HK Audio's Big Venue Pack is a large format ground-stack PA system designed to cover audience sizes upto 600 people*. It offers high output levels and exceptional value for money.

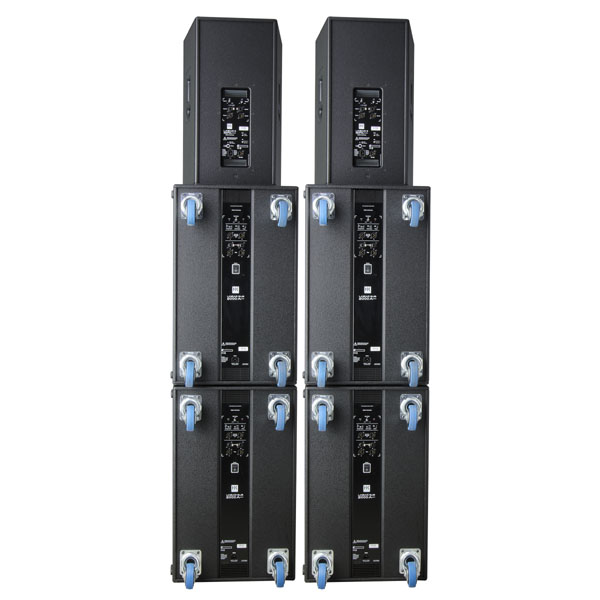

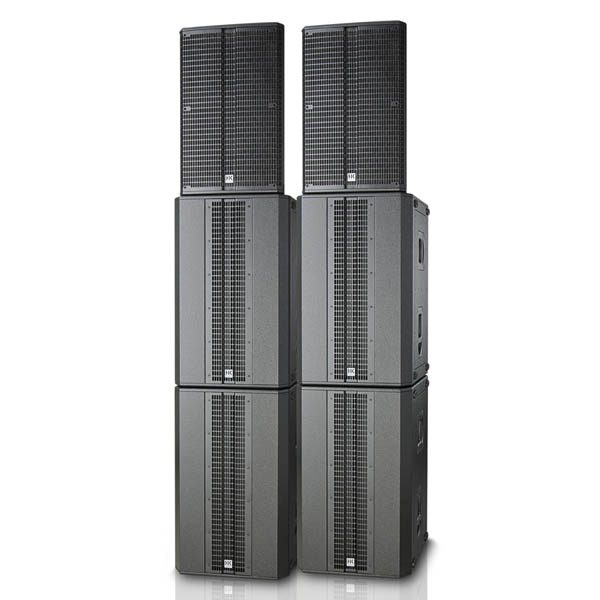

The system includes 2 x L115FA active speakers and 4 x LSUB2000A active subwoofers. together with covers and a special short pole to allow the speakers to be mounted securely above the subwoofers and tilted down.
The system is quick and easy to setup :
• Fully active component management (gain adjustment) for utmost flexibility and utility
• All components needed for safe operation on board and optimized to suit user needs
• Mid/high units may be used separately
• Factory-included accessories
Consisting of:
2 x L5 115 FA
4 x L Sub 2000 A
2 x Tilt Unit
6 x protective covers
User profile Audience size*
Rock Band 500-600
Power DJ 500-600
Hire companies 500-600
* About the audience size: The numbers are more for orientation rather than a definite recommendation. The actual coverage will depend on the room’s size, shape, appointments and furnishings, the area that you want cover, and the desired SPL.
L5 115 FA
Max SPL 128 dB half space
Max SPL peak 137 dB half space
Max SPL calculated 138 dB half space
Cut-off Frequency active 1,65 kHz, 24 dB/Oktave
Power Rating 1000 Watt
Frequency response +/- 3 dB 57 Hz - 18 kHz
Frequency response -10 dB 48 Hz - 20 kHz
Sensitivity HF, 1W/1m 110 dB full space / 116 dB half space
Sensitivity LF, 1W/1m 100 dB full space / 106 dB half space
Low/Midrange amplifier 650 Watt @ 4 Ohm
HF Amplifier 350 Watt @ 4 Ohm
Active protection circuits Undervoltage-Protection, Thermoprotection, Short-Circuit Protection, Overcurrent-Protection
Input Sensitivity +4dBu @ Gain Centerclick / L5 System Level
Protection Subsonic 24dB/Oktave, Peak Limiter
Connections 2 x XLR- Combi IN, 2 x XLR-Thru, 1 x XLR-Mix Out
Low/ Mid Speaker 15" with 3" voice coil (4 Ohm)
HF Driver 1" with 1,75" voice coil (16 Ohm)
Horn characteristics 60°- 90°(asy) x 55° CD Horn, rotatable
Equalizer EQ switch Small Venue / High Power
Subsonic filter yes
Peak limiter yes
Amplifier Class D - Biamped
Sensitivity switch yes - Line/Mic Input A
Pole mount Duo Tilt 3/7
Rigging points 3 x M8
Handles 2 integrated
Optional accessories Protective cover
Enclosure Hybrid (birch multiplex / MDF)
Grille 2 mm metal grille backed with black acoustic foam
Finish Acrylic enamel, black
Dimensions (WxHxD) 44,9 x 70,8 x 45 cm
Weight 30,7 kg / 67,7 lbs
L Sub 2000 A
Max SPL 132 dB half space
Max SPL peak 133 dB half space
Max SPL calculated 135 dB half space
Cut-off Frequency active 100Hz / 120Hz variable with 24 dB/Oktave
Power Rating 1200 Watt
Frequency response +/- 3 dB 49 Hz - X-Over
Frequency response -10 dB 39 Hz - X-Over
subwoofer amplifier 1200 Watt @ 4 Ohm
Active protection circuits Undervoltage-Protection, Thermoprotection, Short-Circuit Protection, Overcurrent-Protection
Input Sensitivity +4dBu @ Gain Centerclick
Protection Subsonic 24dB/Oktave, Peak Limiter
Connections 2 x XLR- Combi IN, 2 x XLR-Thru, 2 x XLR-Mid/High Out
LF Speaker 2 x 12" (8 Ohm) with 2,5" voice coil featuring Advanced-Cooling-Technologie
Subsonic filter yes
Peak limiter yes
Amplifier Class D
Pole mount M 20
Handles 4 integrated
Optional accessories Protective Cover, 100mm Blue Wheels, Tilt Unit
Enclosure Birch multiplex 15/18 mm, 9/13 ply
Grille 2mm metal grille
Finish Acrylic enamel, black
Dimensions (WxHxD) 50,6 x 80,6 x 61 cm
Weight 47,5 kg / 104,7 lbs
The standard warranty on HK Audio products is 1 year, however, their products are supplied with an extended warranty registration card. If this card is completed and returned then HK Audio will issue you with a certificate extending the warranty to 5 years, free of charge.
