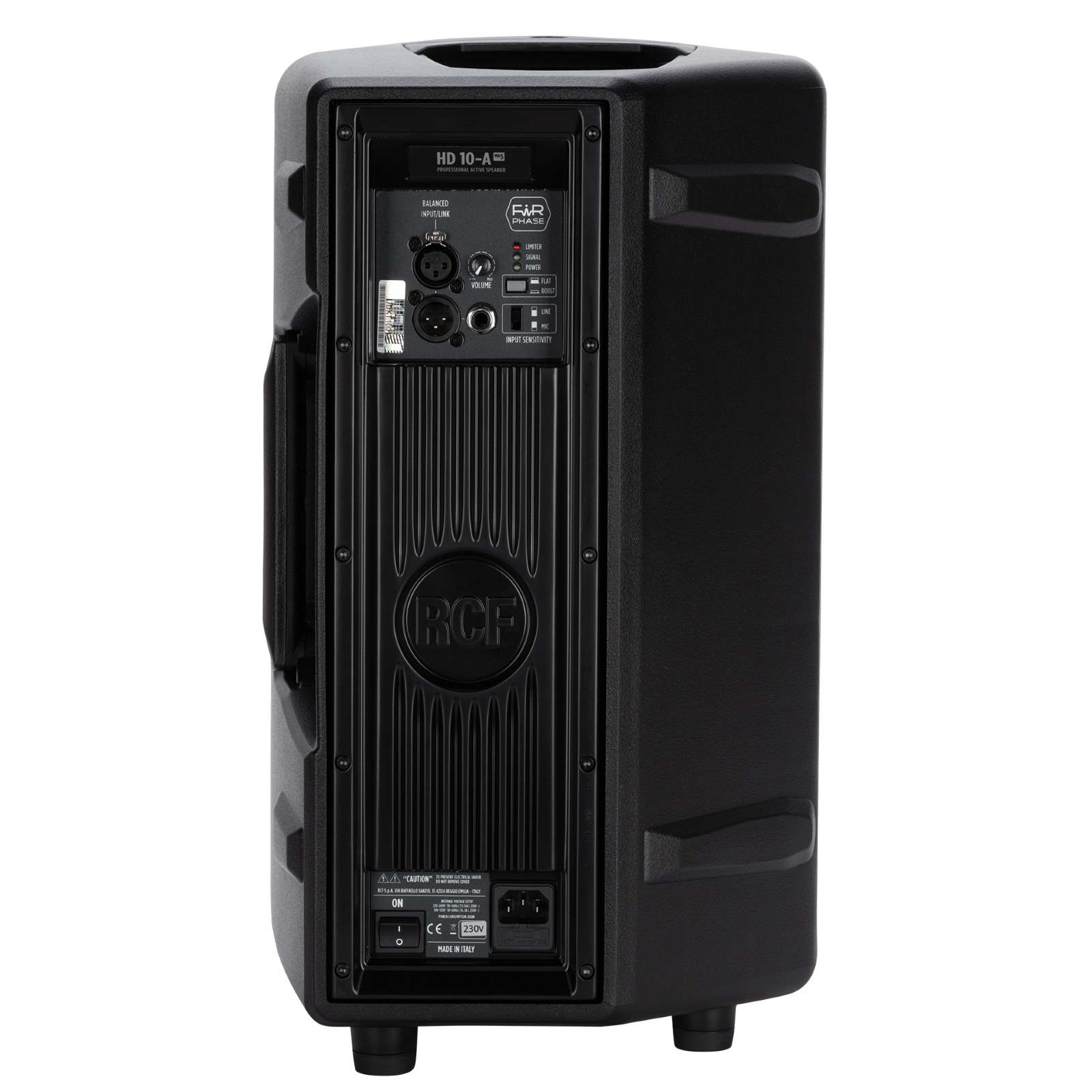

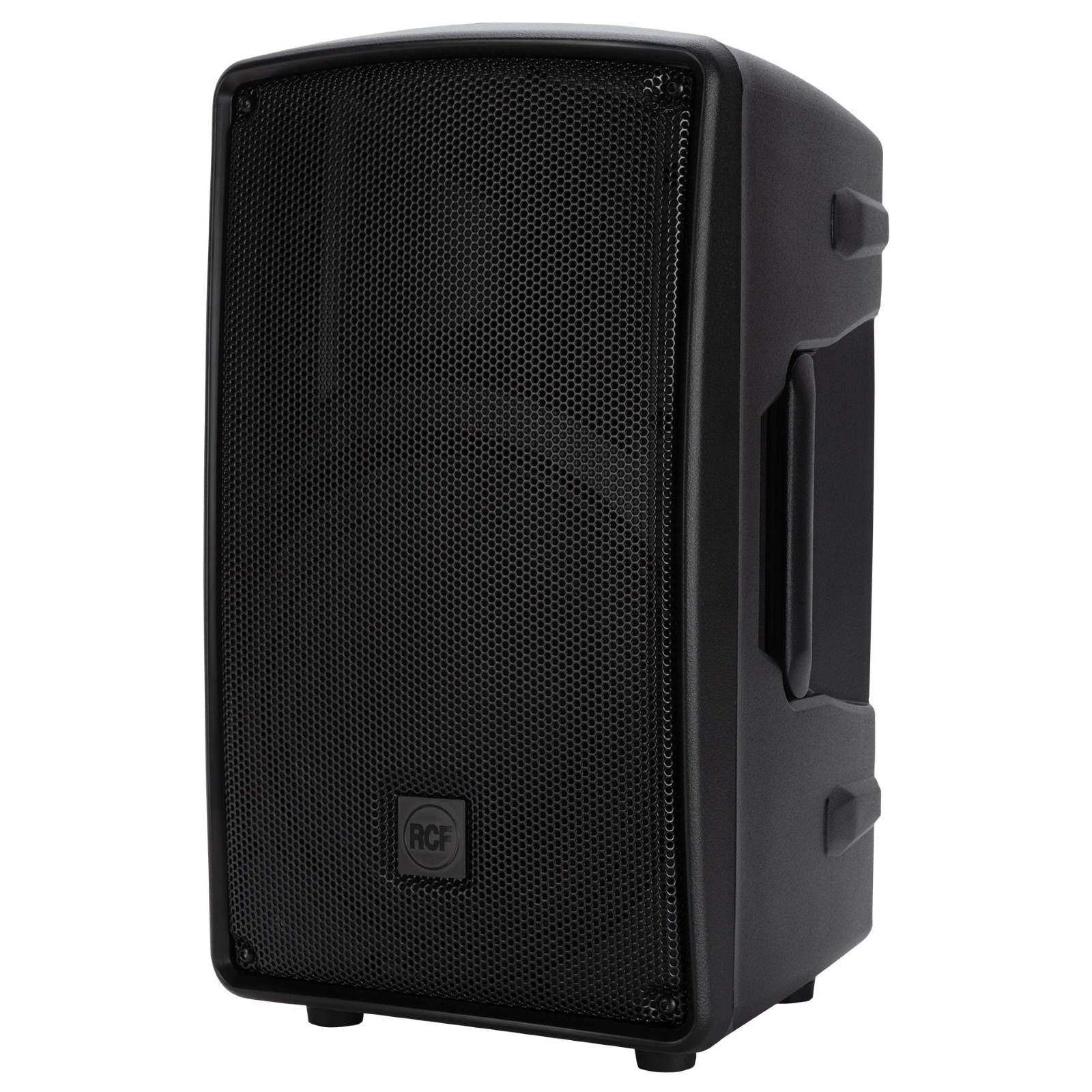

HD 10-A mk5 active speaker boosts performance with a high-power professional 10" woofer and a 1.0" HF driver, an 800W 2ch Class-D amplifier, and innovative FiRPHASE and Bass Motion Control processing. Vocals are natural, the sound is clear at long distances, SPL power is stable at very high levels. The strength of HD series speakers comes from decades of experience building gear for the touring industry, equipping this compact cabinet with power and reliability expected for life on the road. Elegantly designed, the lightweight polypropylene cabinet with internal reinforcement offers maximum strength. The speaker also includes a steel pole mount, threaded inserts for rigging, and rubber handgrips. D-LINE offers working DJs and musicians professional sound designed with music in mind.
128 dB Max SPL
800 Watts 2-way amplifier
DSP Processing with FiRPHASE and Bass Motion Control
1.0” HF driver
10” woofer, high power, 2.0” voice coil
90° x 60°, wide dispersion constant directivity horn
Silent Fan-less Class-D Amplifier
Mylar/Ferrite driver - Kapton former coil
Acoustical specifications
FREQUENCY RESPONSE:
50 Hz ÷ 20000 Hz
MAX SPL @ 1M:
128 dB
HORIZONTAL COVERAGE ANGLE:
90°
VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
1 x 1.0'', 1.0'' v.c
WOOFER:
10'', 2.0'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XRL, Jack
OUTPUT CONNECTORS:
XLR
INPUT SENSITIVITY:
-2 dBu/+4 dBu
MIC. INPUT SENSITIVITY:
-32 dBu
Processor section
CROSSOVER FREQUENCIES:
2000 Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Soft Limiter
CONTROLS:
Boost, Volume, Mic/Line
Power section
TOTAL POWER:
800 W Peak, 400 W RMS
HIGH FREQUENCIES:
200 W Peak, 100 W RMS
LOW FREQUENCIES:
600 W Peak, 300 W RMS
COOLING:
Convection
CONNECTIONS:
VDE
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite
HARDWARE:
1 x M10 top, 1 x M10 bottom
HANDLES:
1 Top, 1 Side
POLE MOUNT/CAP:
Yes
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
527 mm / 20.75 inches
WIDTH:
303 mm / 11.93 inches
DEPTH:
303 mm / 11.93 inches
WEIGHT:
11.8 kg / 26.01 lbs
