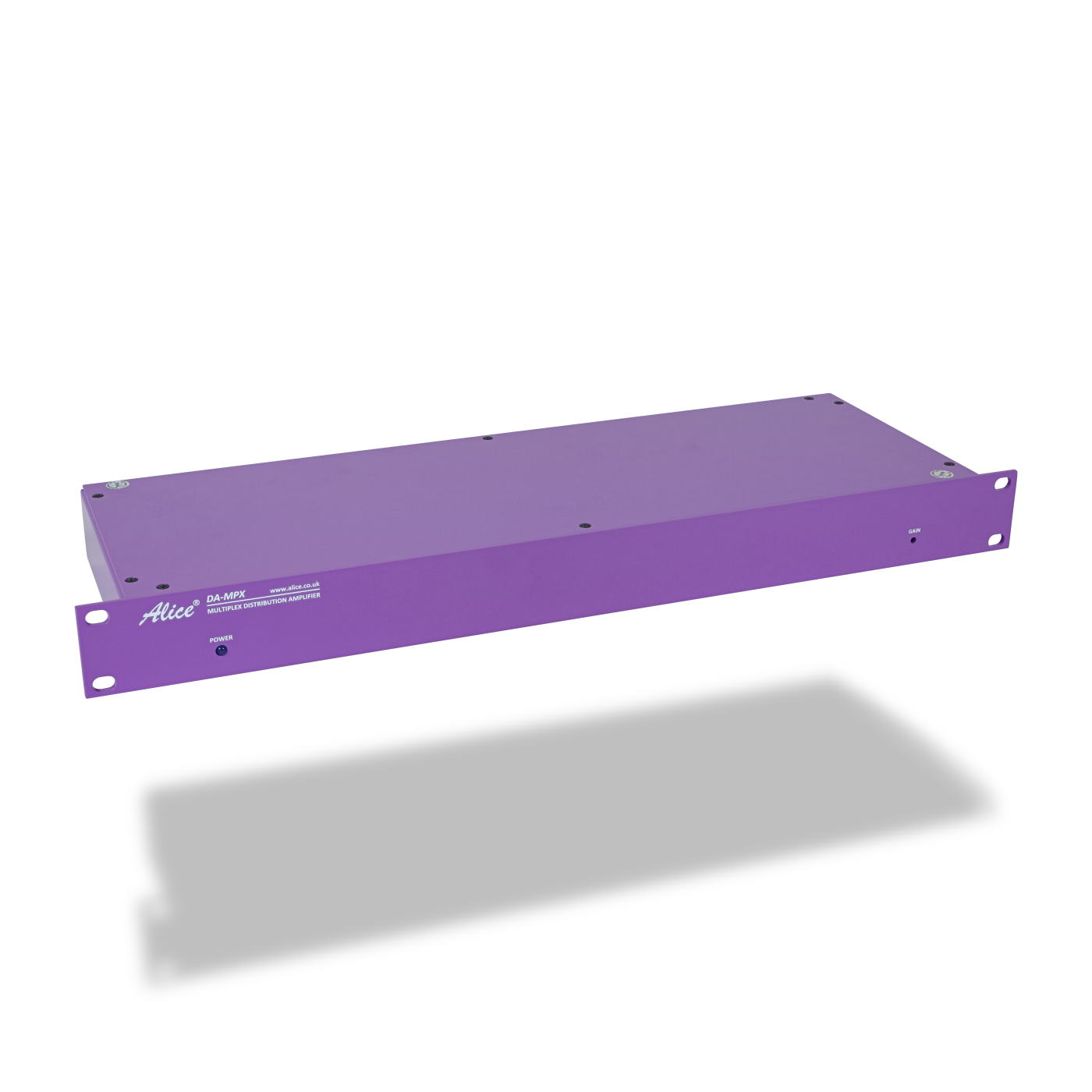

The Alice rack mounted multiplex distribution amplifier is designed to provide multiple MPX feeds to main & standby transmission systems, automatic change-over units, silence detectors and remote monitoring facilities.

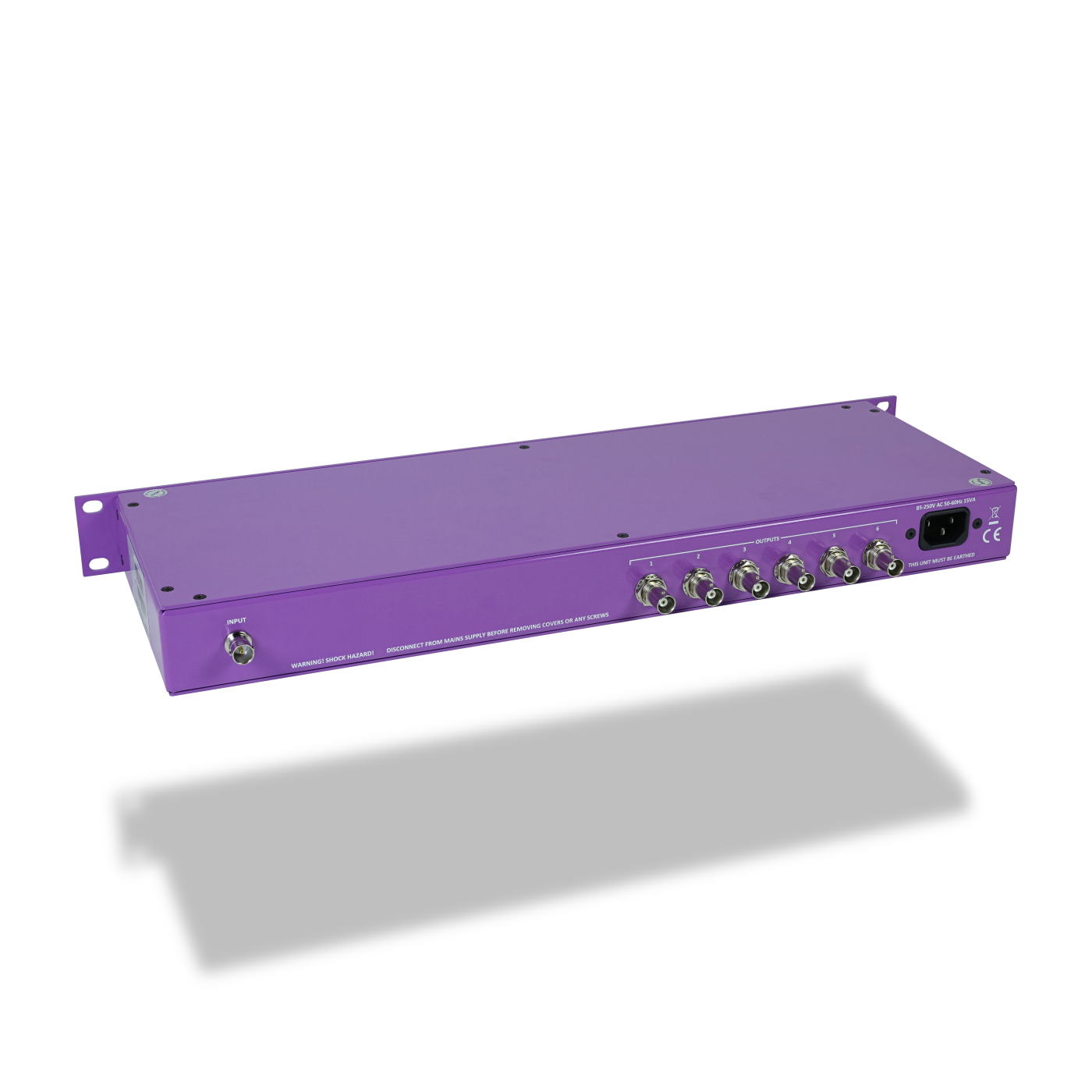

A single input provides six buffered outputs.Level adjustment is available on the front panel.
Impedance: 75 ohms
Input/Output Connectors: BNC
Frequency response: 20Hz to 20kHz ±0.2dB
Phase shift: 20Hz <1° 20kHz<5°
Frequency Response: (THD) + 10dBu: 10Hz -0.03dB, 1kHz 0.00dB and 80kHz +0.02dB
Distortion: +10dBu @ 1kHz -87dBu (0.004%) and +19 @ 1kHz -90dBu (0.003%)
Noise Figure: ~98dB Unweighted
Gain range: adjustable from -10dB to +20dB
Mains supply: 85v to 250v AC operation
Power consumption: 20VA
Case details: 1U 19" rack mounting, overall depth 165mm
Shipping Weight: 1.95Kg
