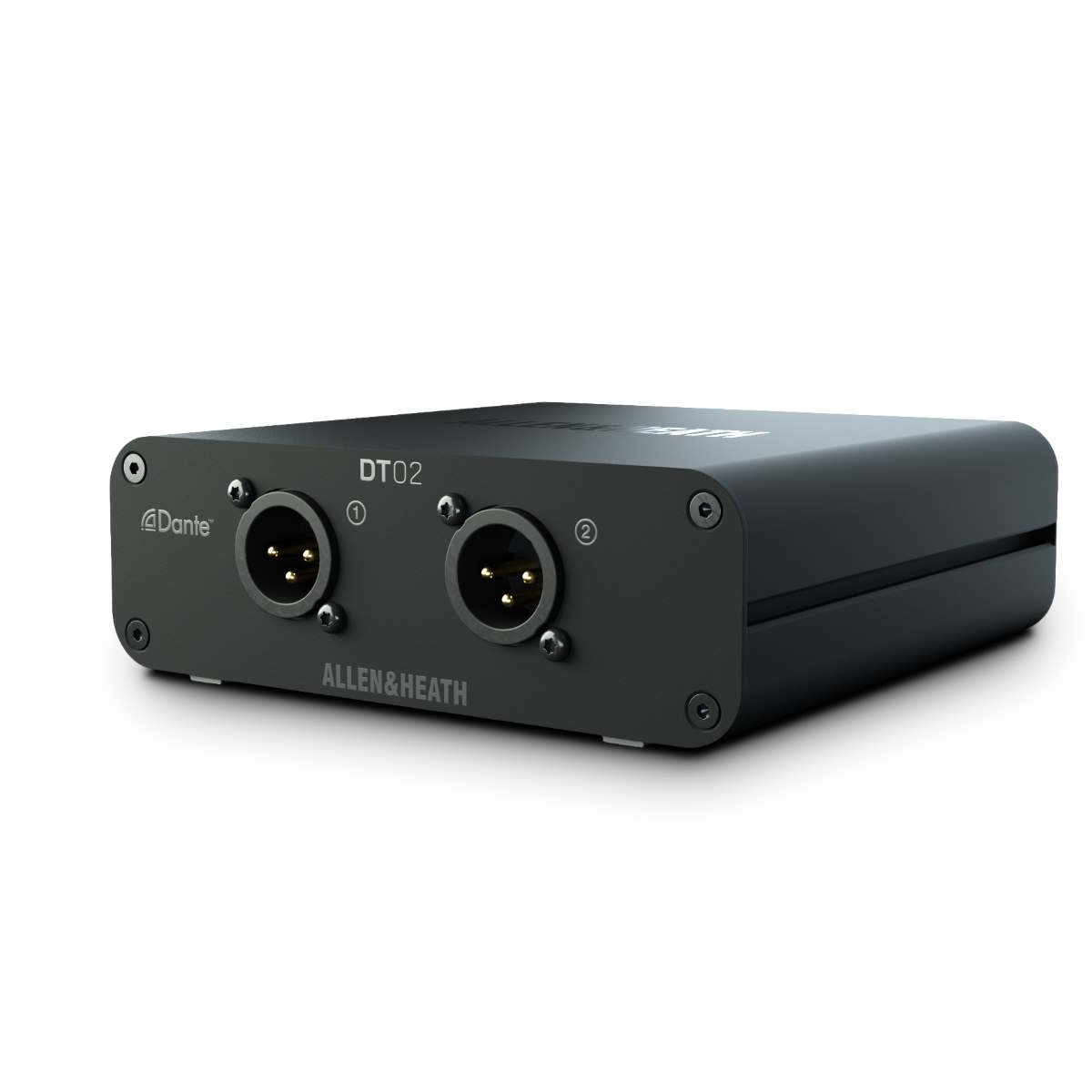

DT02 is a cost-effective, compact 48kHz/96kHz Dante interface enabling 2x XLR outputs wherever you need them on your Dante network. Ideal for a wide variety of fixed installation and AV hire / portable applications, DT02 can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as with third party Dante systems.
Housed in a compact rugged aluminium box, and with optional mounting ears or rack kit, DT02 can be easily deployed wherever you need it, either mounted in proximity of active speakers or monitors, or placed in the equipment rack ( optional rack ears required ).
The unit can be PoE powered or powered via a DC 12V supply.
Included items :
DT02
DC 12V power supply
Rubber feet
Dante output interface, 48kHz/96kHz
2x XLR line outputs
PoE powered or DC 12V

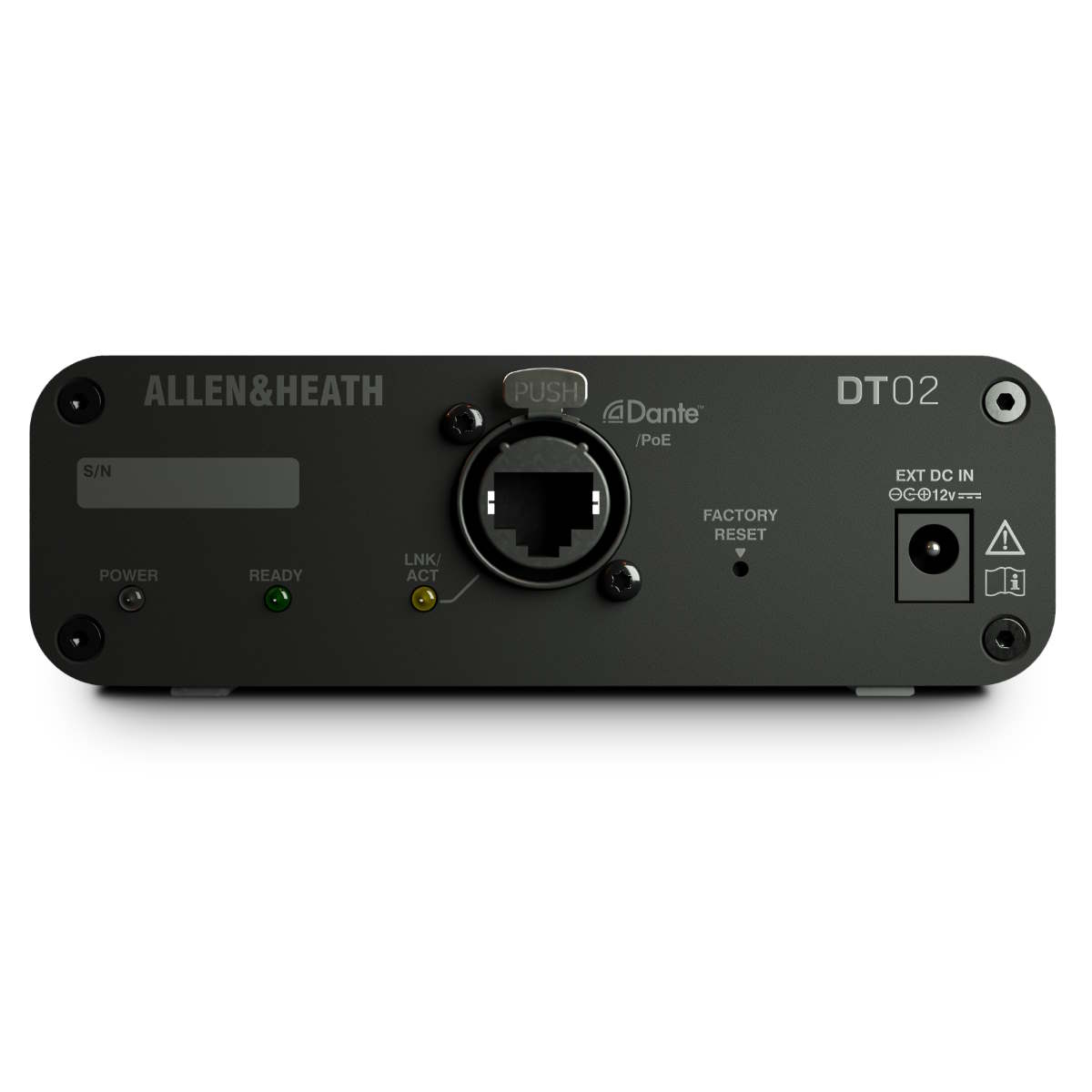

EtherCon connector
Rugged aluminium box

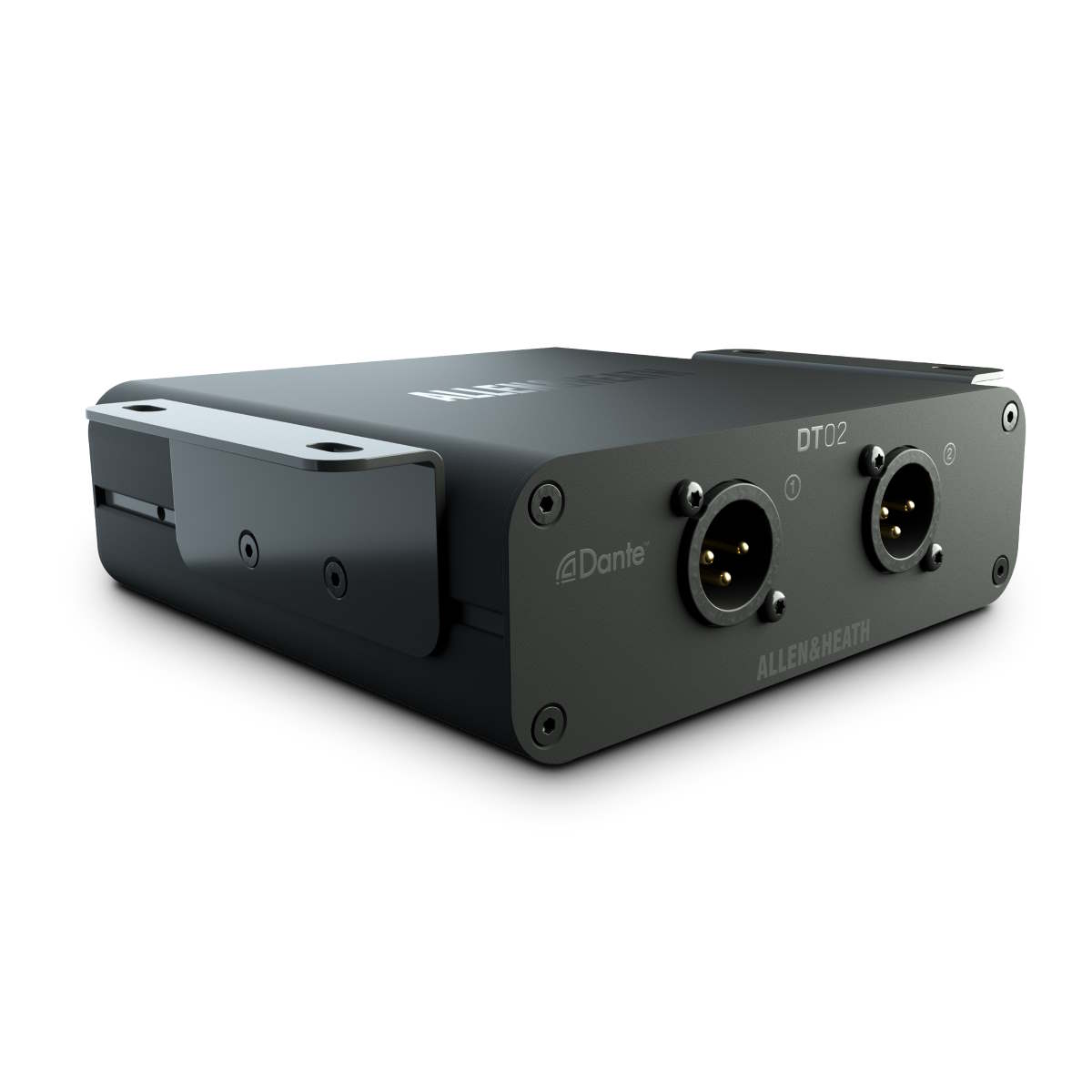

Optional ears for surface mounting (included in DT02-M version)

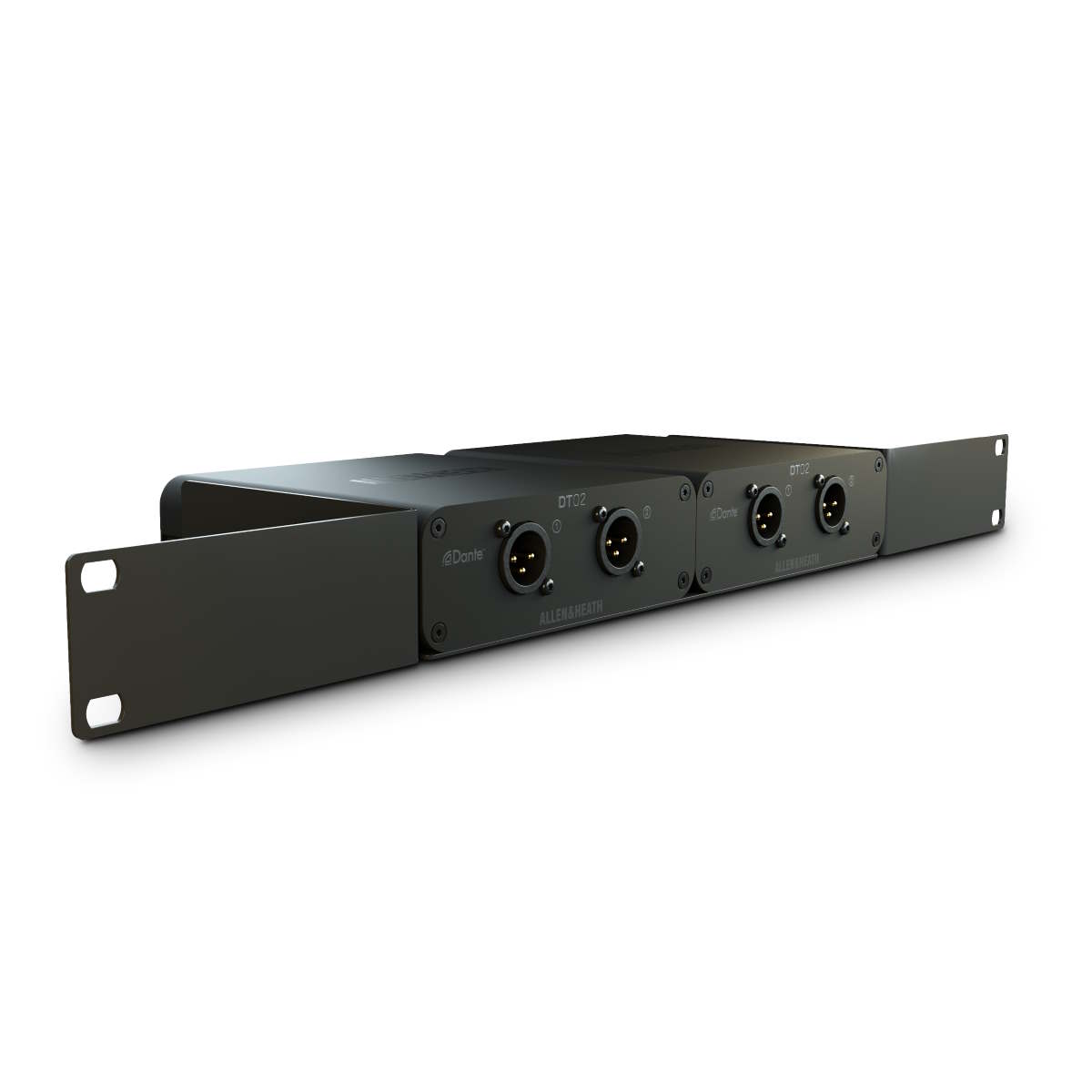

Optional rack mounting kit DT-RK19
AES67 compatible
Dante Domain Manager ready
XLR Outputs Balanced, relay protected
Output Impedance <75O
Nominal Output +4dBu = 0dB meter reading
Maximum Output Level +22dBu
Dante 48kHz/96kHz
Power and Temperature
DC Input +12V DC 1.25A
Power Consumption 10W max
Operating Temperature Range 0°C to 40°C (32°F to 104°F)
PoE Requirements 802.3af 15W
Dimensions and Weight Width x Depth x Height x Weight
DT02 130 x 131 x 43 mm, 0.5kg
(5.1” x 5.2” x 1.7”, 1lbs)
