DanteTM is a ground breaking, Ethernet compliant audio networking technology developed by Australian company Audinate to satisfy the increasing demands of the live sound industry for high performance audio, routing flexibility and affordable direct to computer recording. It uses CAT5 cable and standard networking components to distribute multiple streams of audio plus integrated control data with sub millisecond latency.

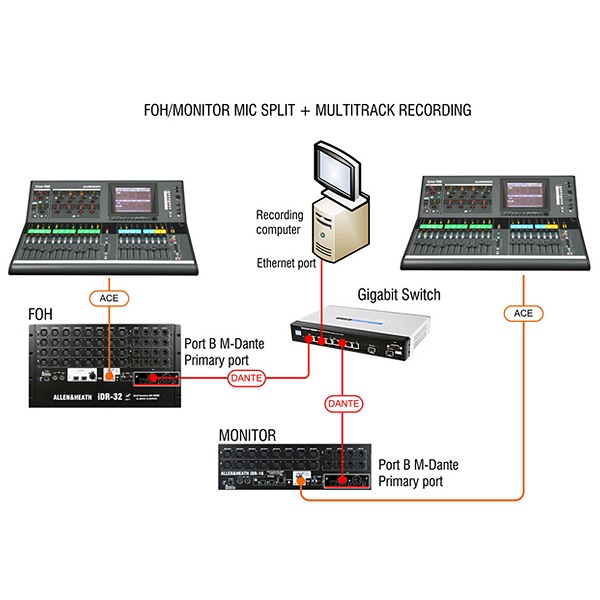

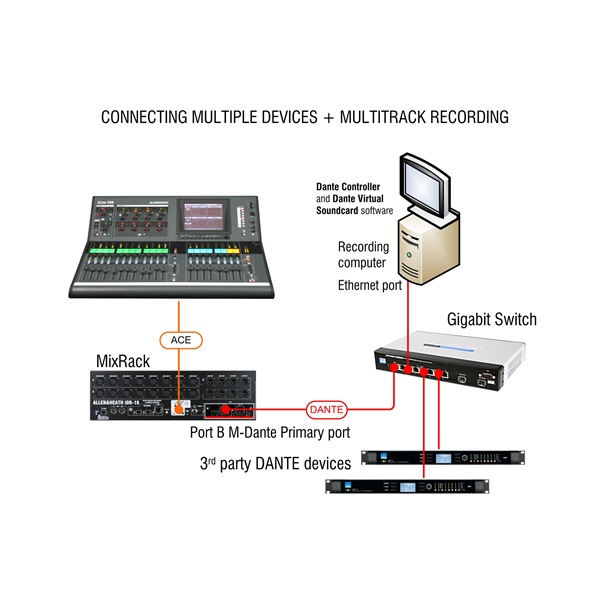

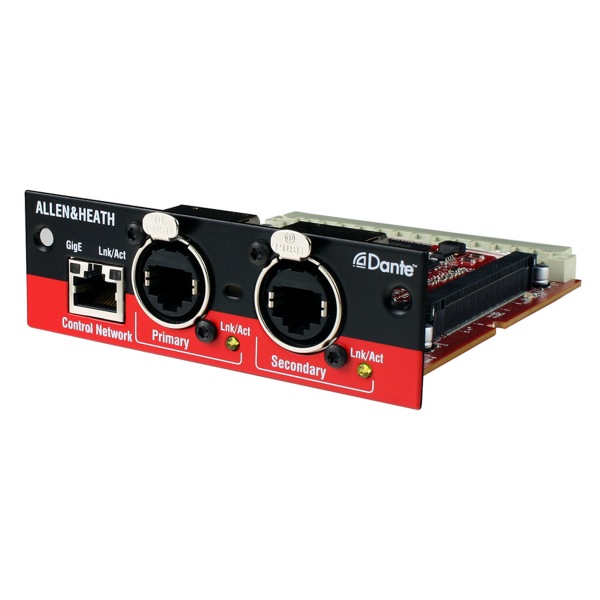

Allen & Heath are implementing the new Brooklyn II card from Audinate which takes Dante technology to a new level with a full 64 channels of bi-directional audio. The M-DANTE card can be fitted into Port B of any iLive MixRack for system linking, digital mic splitting, up to 64 track recording, and networking with the growing number of Dante equipped third party audio processors, amplifiers and more. It can also be fitted into Port A of the RAB2 equipped modular iLive as an alternative Surface to MixRack link.


Dante Virtual Soundcard is software from Audinate that lets you connect up to 64 channels of iLive audio directly to your PC or Mac via its Ethernet port, ideal for multitrack recording and playback, or working with popular processing plug-ins. One Dante Virtual Soundcard licence is provided free with M-DANTE. More can be purchased from Audinate. A limited period free trial is also available.

Use the token provided with the M-DANTE card to obtain your free DVS licence.

Please note - The Allen & Heath M-DANTE card provides an interface to a Dante network. The Dante networking standard, Brooklyn II hardware used and the software required to set it up and record to computer is provided and supported by Audinate. For further information or help on using Dante please refer to the documentation and support at Audinate.


Allen & Heath Dante Card Features :

Dante benefits for iLive

64 channel bi-directional audio plus control over CAT5
Uses standard, off-the-shelf computer networking equipment
Self discovery and auto-configuration of IP addresses
Easy to add, name, remove and rearrange devices
Wide range of Dante enabled equipment becoming available
Secondary port for redundant network option *
Control port to bridge iLive or other network over Dante *
Sample accurate playback syncronisation
Very low latency
Gigabit ports
Direct connection to computer for multitrack recording
Dante Virtual Soundcard software replaces expensive hardware
Dante Controller software available for setting up the network

* Some of these features will become available with Release 2 of the Brooklyn II firmware due shortly.
