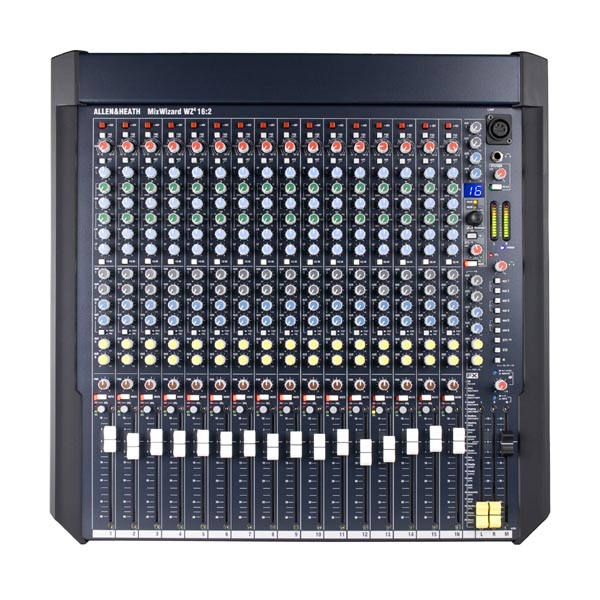

With its simplicity, quality and plentiful inputs, WZ4 16:2 will be loved by seasoned engineers and novice operators alike. This is a true all-purpose mixer, providing a full 16 high specification mic/line inputs in a compact, straightforward format that has made it a consistent best seller.
WZ4 16:2 features our acclaimed 4 band EQ with 2 sweepable mids, high quality 100mm faders, 6 aux sends, 12 segment bargraph metering and our unique QCC connector system for easy desktop, rack or flightcase mounting.
New features for this 4th generation MixWizard console include two newly designed digital FX engines with 20 studio quality FX presets, EQ in/out switching and the option to fit a multichannel USB interface with high quality 16 channel soundcard for easy multitrack recording and 2-track playback.
If you’re looking for professional grade, all-purpose analogue mixers in a compact, rack mountable frame, the MixWizards continue to set the bar.
19 inch Rack mountable
16 mic/line inputs with balanced XLR/TRS jack, insert and direct output
100mm faders
4 band EQ with 2 swept mids
6 Aux sends – 2x pre fade / 2x switched / 2x post fade*
2 Stereo returns
Dedicated mono output fader – can be switched to provide an L+R mono feed for a centre or fill speaker, or sub bass feed
Independent A-B output for 2-track recording, monitor foldback, speaker fills etc
Tri-colour, 12 segment bargraph metering
Twin FX engines with 20 studio quality FX presets
+48V Phantom Power
Signal and Peak LEDs
Lamp socket
USB multitrack recording option
Footswitch connector (mutes/unmutes the ST1 FX Return)
*Can be reconfigured with internal jumpers
