Martin Audio A40-W Compact Installation Speaker - White

Ref: A40-W

Quantity:

  • PRICE: £126.00

Price includes VAT

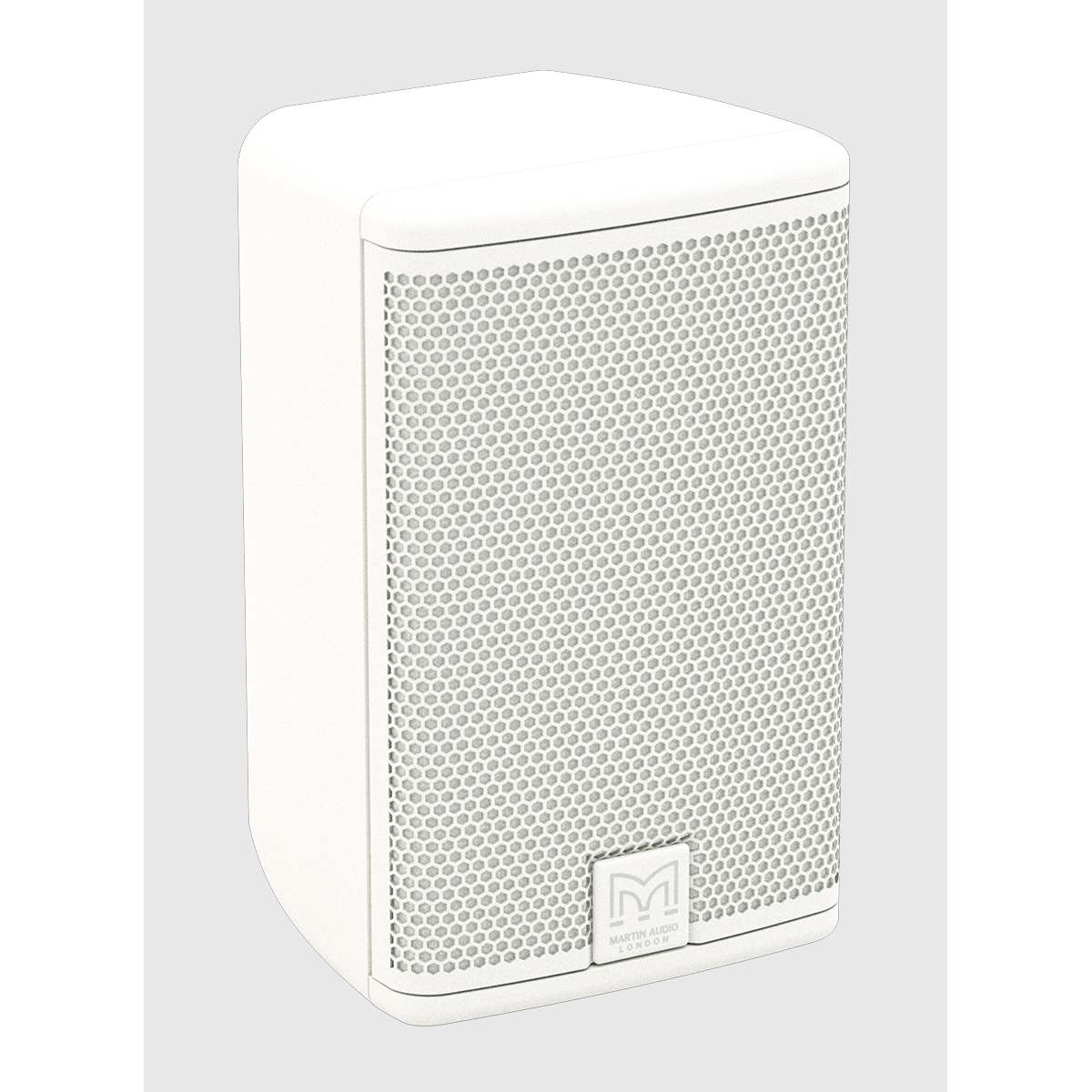

Martin Audio A40-W Compact Installation Speaker - White
Martin Audio A40-W Compact Installation Speaker - White Thumbnail
  • Overview
  • Specifications
  • Discounted Trade Prices

** PRICED INDIVIDUALLY BUT PACKED IN PAIRS SO MUST BE ORDERED IN MULTIPLES OF 2 - WALL BRACKET INCLUDED **

The A40 is the perfect choice for background and foreground systems which require superior performance. Its Martin Audio signature sound characteristic also provides a seamless sonic transition within a multi-zoned complex using larger Martin Audio systems such as CDD or BlacklineX.

Comprising a 4” (100mm) LF driver and a 0.75” (19mm) silk-dome HF driver on a 110° x 80° horn, it handles 40W AES, 160W peak and can produce 109dB peak output at 1 metre. It has a smooth frequency response and strong bass reproduction that extends down to 70Hz.

With a nominal impedance of 16 ohms, multiple speakers can be driven in parallel from a single channel of a low impedance amplifier, such as the Martin Audio VIA2004, thereby maximising efficiency and minimising cost. For full-bandwidth protection, the low and high-frequency sections are individually protected against overload.

Available in black or white as standard, it can be readily painted to match any décor, and can be wall-mounted vertically or horizontally using the wall bracket supplied. In addition, for general outdoor use the cabinet only requires the additional waterproof connector cover.

The VIA2004 amplifier in combination with a Martin Audio DX0.5 controller will be perfect partners for small scale efficient installations, or with the DX4.0 controller for larger more complex installations, which could then also be managed by Martin Audio’s VU-NET control software platform.

The Martin Audio SX110 subwoofer will extend the bandwidth of ADORN on-wall speakers and is ideal for foreground music applications which require increased impact and low frequency performance.


TYPE Ultra-Compact passive two-way system, front ported bass reflex
FREQUENCY RESPONSE (1) 98Hz-17kHz ± 3dB
-10dB @ 70Hz
DRIVERS
LF: 4” /1” high-temp voice coil, coated paper cone, rubber surround ferrite motor, pressed steel chassis
HF: 0.75” silk dome, neodymium motor
RATED POWER (2) 40W AES, 160W peak
RECOMMENDED AMPLIFIER VIA2004
SENSITIVITY(4) 87dB/1W/1m
MAXIMUM SPL (9) 109dB peak
NOMINAL IMPEDANCE 16O
DISPERSION (-6DB) 110° H x 80° V
CROSSOVER 3.5kHz passive (LF and HF auto-resetting fuses)
RECOMMENDED HIGH-PASS FILTER 60Hz 24dB/oct
ENCLOSURE ABS, UL 94V-0 rated
FINISH Black or white
GRILLE Perforated steel
CONNECTORS Push terminals
FITTINGS Wall bracket included
DIMENSIONS EXCL. BRACKET
(W) 124mm x (H) 200mm x (D) 114mm
(W) 4.9in x (H) 7.9in x (D) 4.5in
WEIGHT 1.75kg (3.9lbs)


Business buyers are welcome to contact our Sales Team for discounted trade prices. Please send an email to sales@mercury-av.com letting us know which products you are interested in and the name & address of the business.
