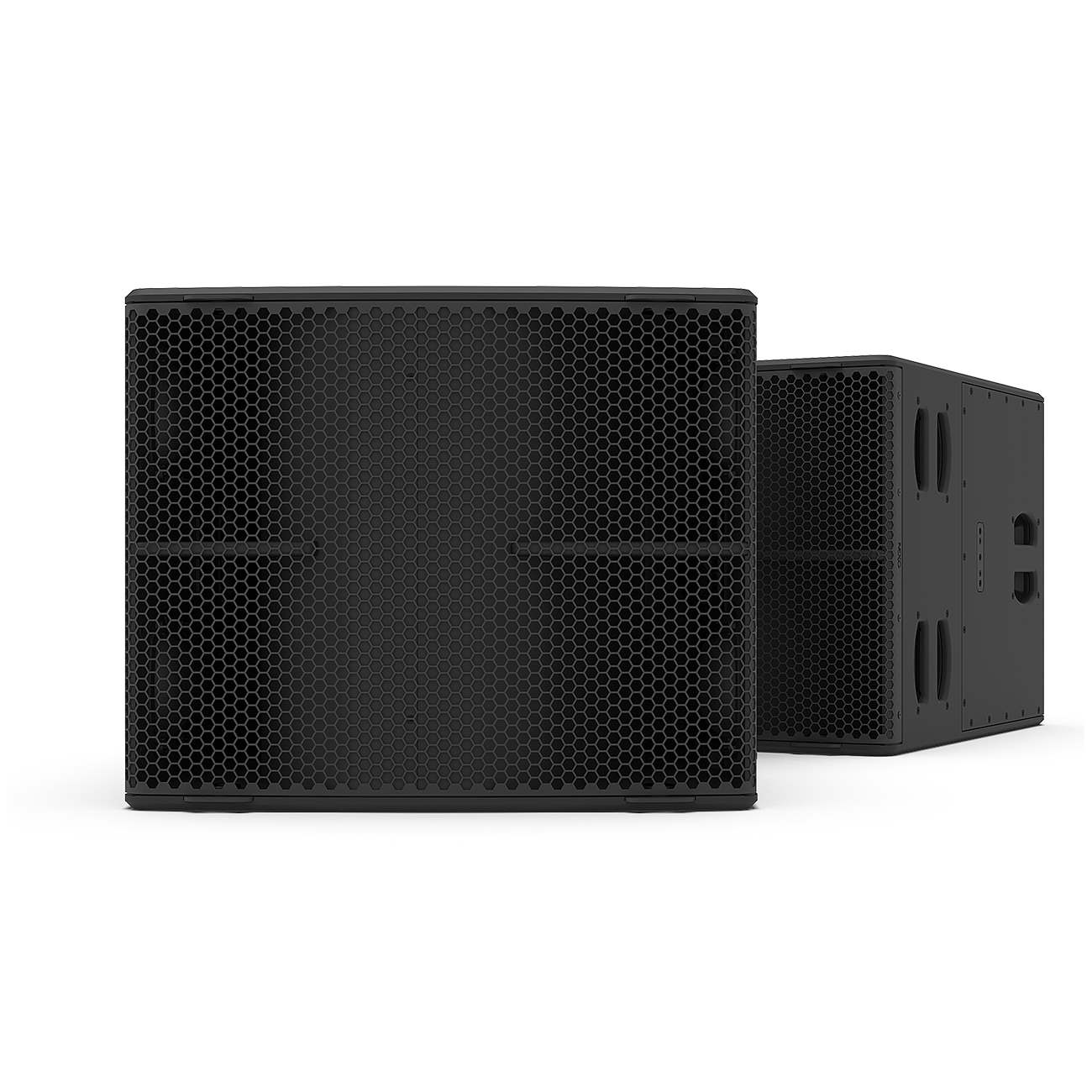

Nexo L18 Black Touring Version
Measuring 680mm wide x 559mm high x 775mm deep and weighing 50Kg, the L18 sub employs a 18" long excursion driver in Baltic birch / poplar plywood cabinet with threaded inserts for mounting accessories and an M20 stand fitting. With a frequency range of 32Hz-120Hz, and 140dB Peak SPL, The L18 is specially designed in a footprint to match the P15, making it a perfect partner in flown applications, and for use as a drum fill.
Dedicated partner sub for P15 with matching footprint
Extends LF performance to 32Hz
140dB peak SPL
Can be deployed in standard and cardioid modes
Threaded inserts on the back and on both sides for connection of mounting accessories
Standard fitting M20
SPECIFICATIONS
Frequency Response (+6 dB 32 Hz - 120 Hz
Peak SPL Level (1m) 140 dB Peak
Recommended Amplifiers 1550 to 2450 Watts / 4O
Crossover Frequency 60 Hz, 85 Hz, 120 Hz
Nominal Impedance 4-Ohms
FEATURES
Components 1x 18" – 4 ohms – Long excursion – Neodymium driver
Connectors 2x NL4, 4 poles connectors
Rigging Points 1 x Universal accessory fit on each side + 1 x M20 thread for Pole Stand on top
Material Custom made bent plywood of Baltic birch and poplar
Finish Black or white structural paint
Front Finish Steel front grille
Weight 50 kg
Height x Width x Depth 559mm x 680mm x 775 mm (22.0” x 26.8” x 30.5”)
Operating Temperature Range 0°C - 40°C (32°F - 104°F)
Storage Temperature Range -20°C - 60°C (-4°F - 140°F)
System Operation
Recommended Powering Solution NXAMP4X2MK2: 1 x L18 per channel
Optional Powering Solutions NXAMP4X1MK2 (Bridged): 1 x L18 per channel
NXAMP4X4MK2: Up to 2 x L18 per channel
