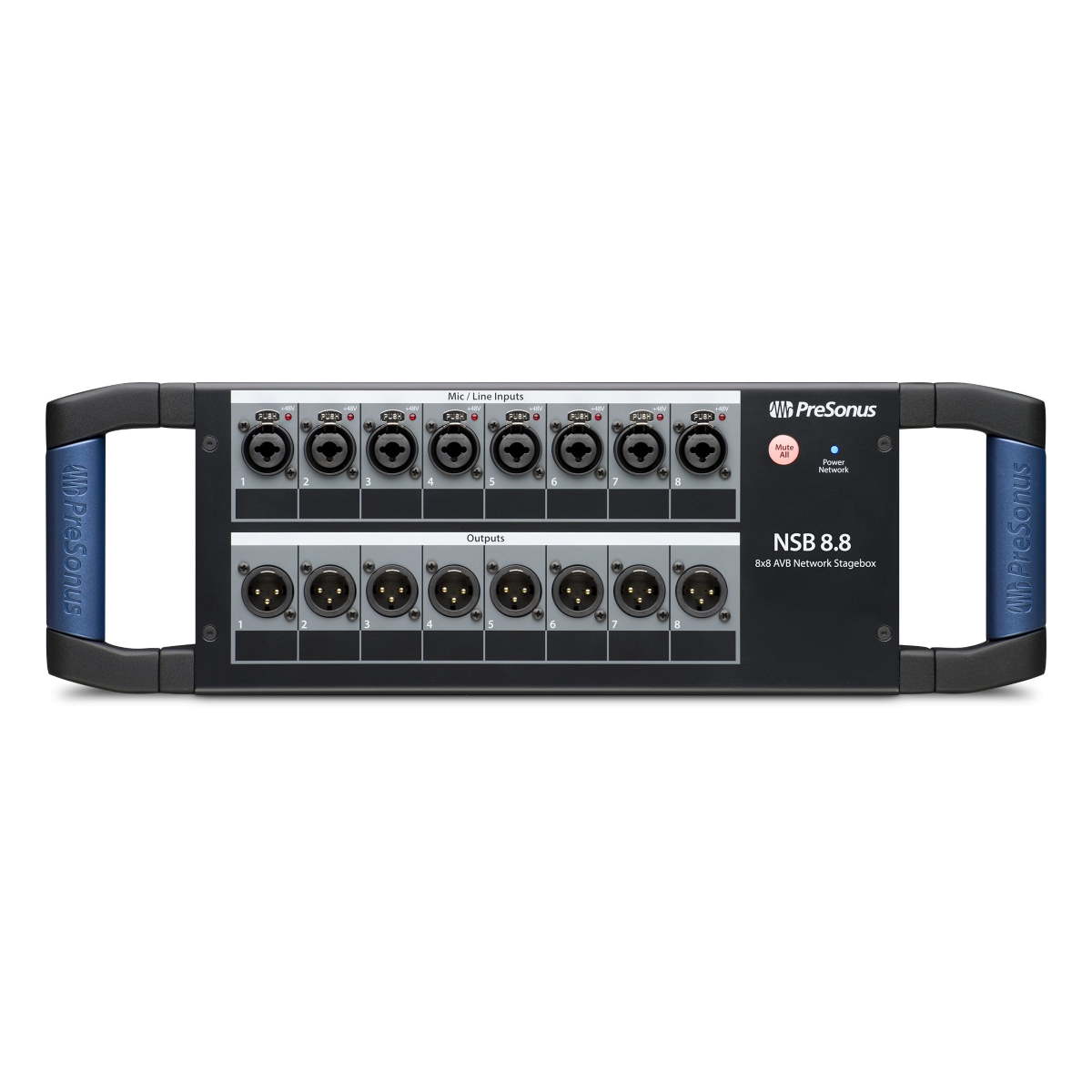

The PreSonus® NSB 8.8 networked stage box lets you put your analog I/O for your StudioLive® Series III digital mixer wherever you need it. Equipped with eight digitally controlled XMAX mic preamps, eight balanced line-level inputs, and eight analog outputs, the NSB 8.8 integrates seamlessly into StudioLive Series III digital mixers with a single Ethernet connection. Remote control input trims, phantom power, and more directly from your StudioLive Series III console or from UC Surface remote mixing software on your tablet or laptop.
8x8 network stage box for StudioLive Series III console mixers
8 digitally controlled XMAX mic/line inputs with gain compensation for shared streams
8 line outputs
Easy configuration from StudioLive Series III console mixers and UC Surface

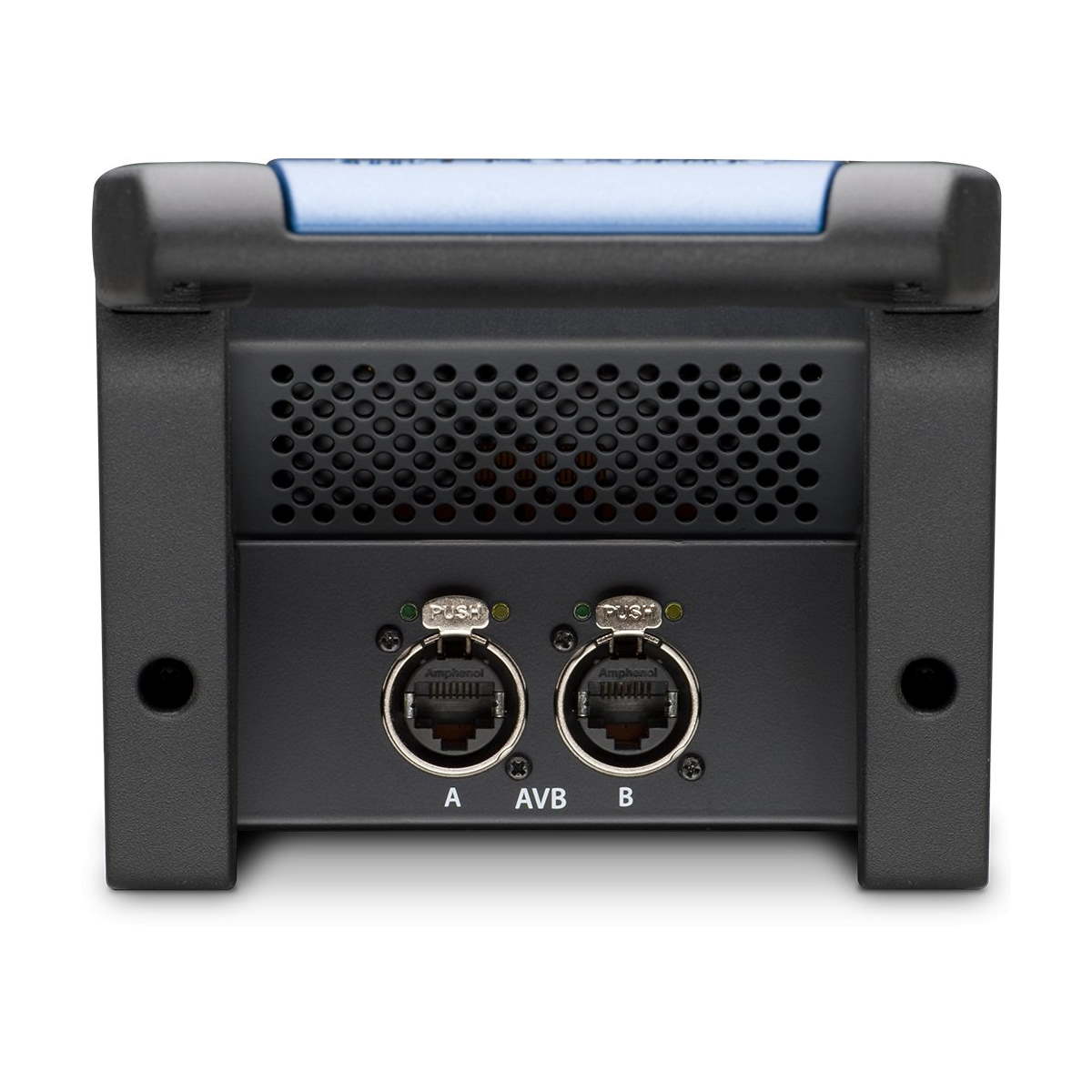

Built-in 2-port AVB switch with locking Ethernet connections for easy point-to-point and daisy-chain network configurations
Rugged all-metal stage box enclosure
Optional rack ears
Compatible with stage pockets from Ace Backstage
