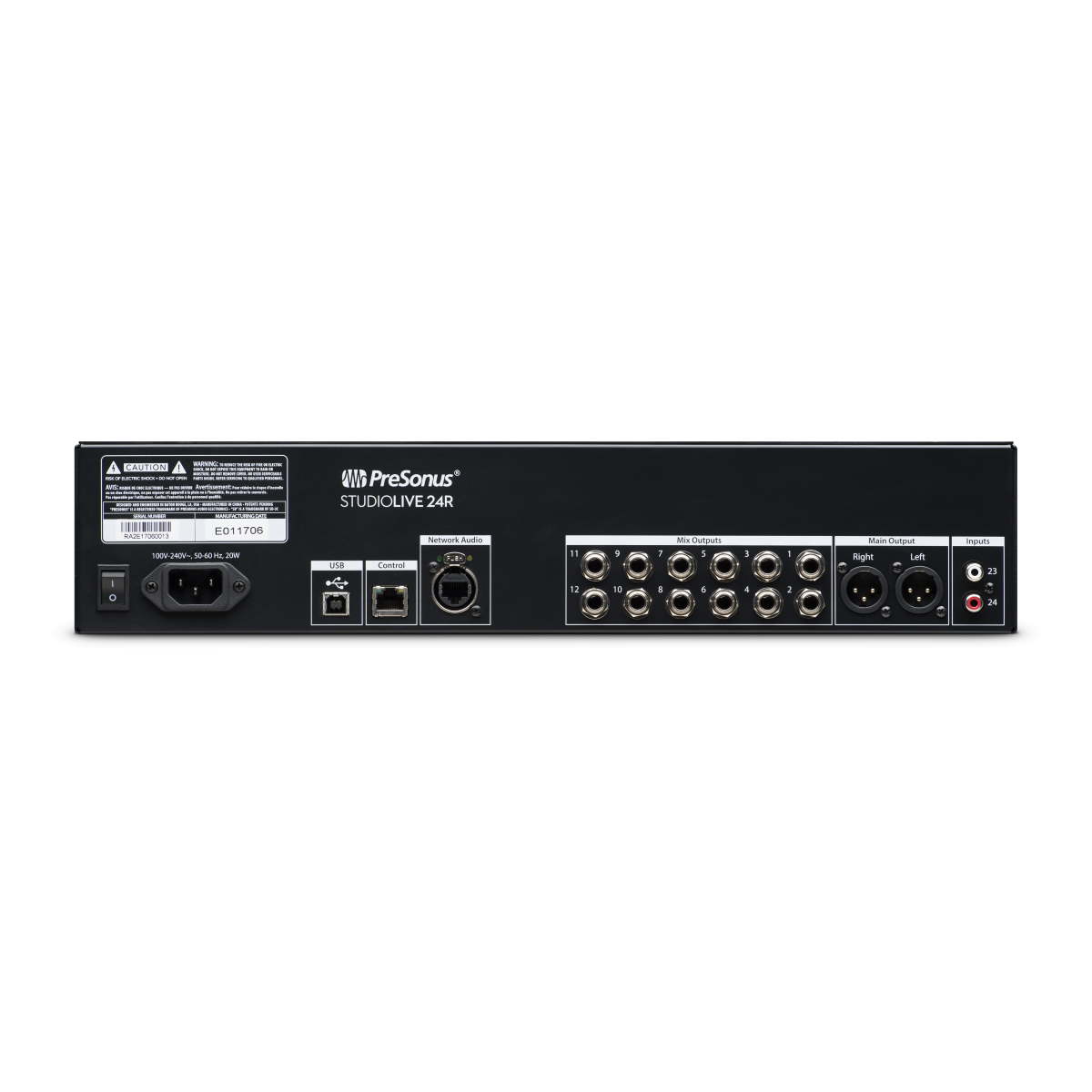

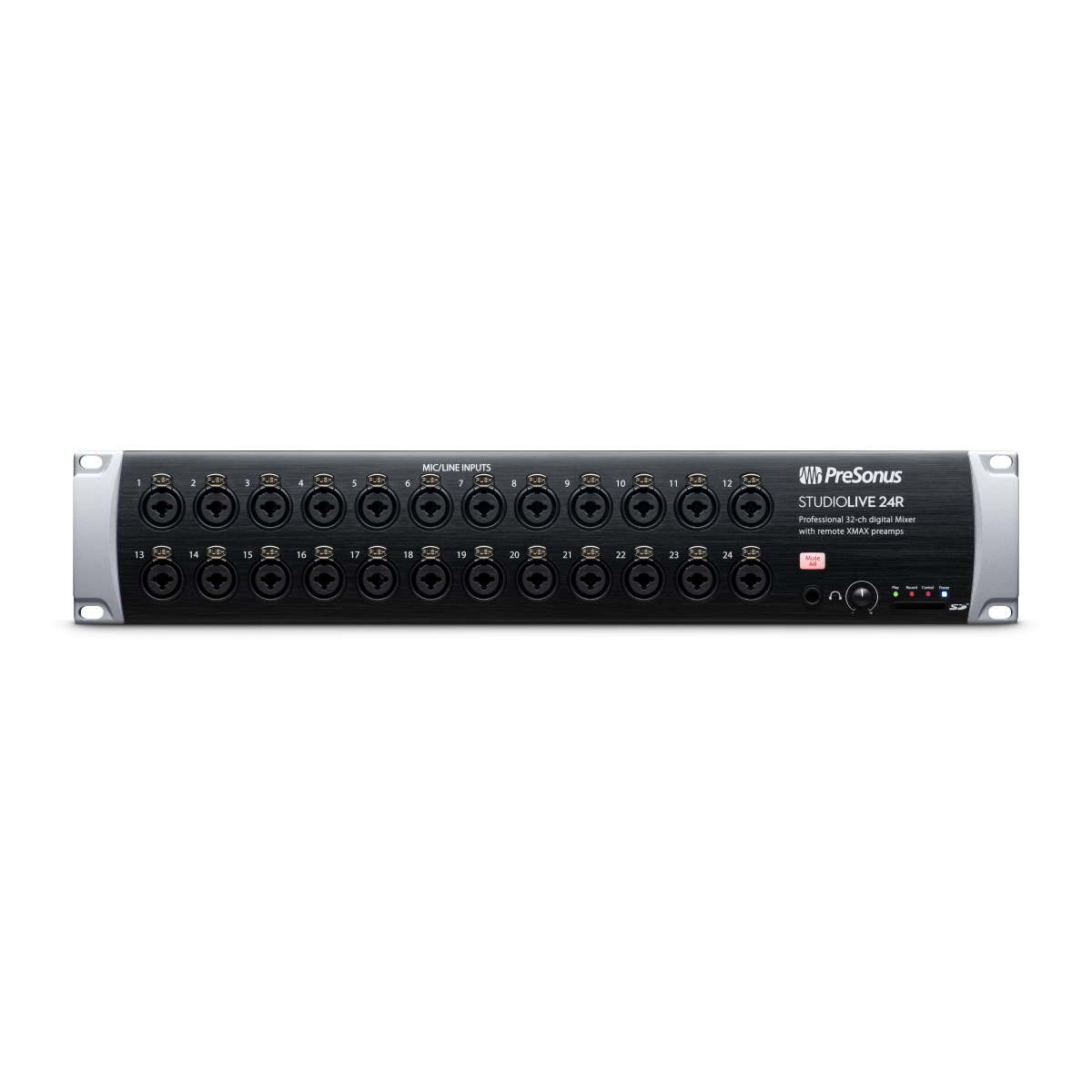

The StudioLive® 24R digital mixer is four audio tools in two compact rackspaces. Use it as a standalone digital mixer with UC Surface remote mixing software. Pair it with your StudioLive Series III console mixer to use as a stage box or integrated monitor mixer. Connect it with EarMix 16M monitor mixers for the ultimate personal monitor system. And of course, like other StudioLive Series III digital mixers, the StudioLive 24R is a continuously bidirectional, 128-channel (64x64) USB audio interface. Whether used standalone or as part of a complete audio system, no other rackmount digital mixer is as flexible or as powerful.
Powered by the new dual-core PreSonus® FLEX DSP Engine to provide the most processing of any digital mixer in its class
36 input-channel digital rack mixer
24 local digitally controlled XMAX mic/line inputs
4 FLEX FX returns
26 mix buses
16 FlexMixes (Aux, Subgroup, Matrix)
4 dedicated FLEX FX buses
Stereo Main bus
286 simultaneous processors
HPF
Gate/Expander
Compressor with Fat Channel plug-in models
4-band/6-band parametric EQ with Fat Channel plug-in models
Limiter
31-band graphic EQ
4 FLEX FX slots featuring legendary classic reverb emulations and delays
State Space Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
24 DCAs to control groups of channels
128-channel (64x64) recording over USB
Onboard stereo SD recorder with true Virtual Soundcheck mode
AVB networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
Monitor Mix and Stage Box mode for use with StudioLive Series III console mixers
Pair with EarMix 16M personal monitor mixers for the ultimate personal monitor system
Remote control every mix function from your computer, iPad®, or Android tablet with UC Surface (included)
Put your musicians monitor mix under their fingers with QMix®-UC (included) for iOS® or Android
Capture® 3.0 multitrack software included
Automated Virtual Soundcheck
Store StudioLive® mix scenes with your audio
Advanced Studio One® integration (Studio One Artist Included)
XMAX mic preamp control from Studio One
Control Fat Channel parameters from Studio One mixing console
