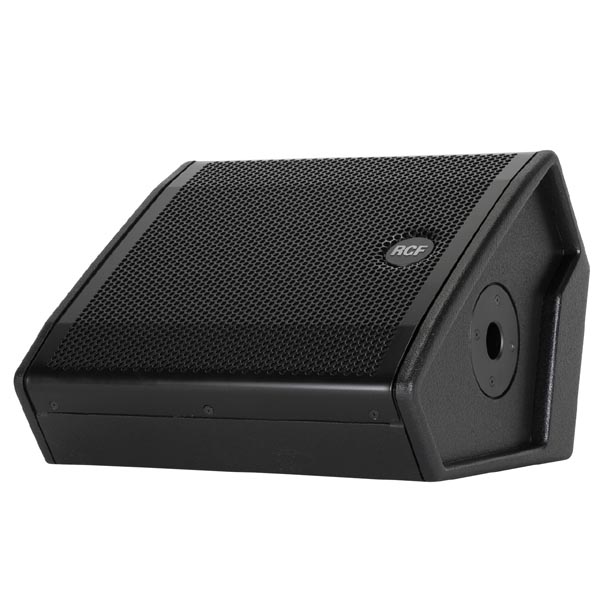

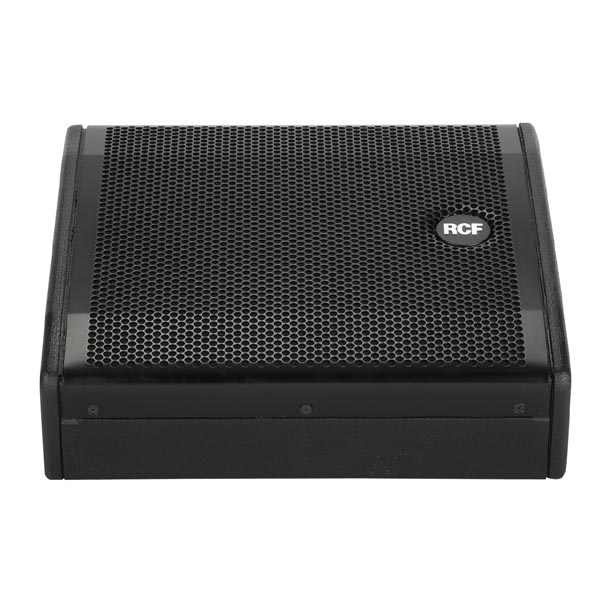

RCF NX10SMA Active Stage Monitor
RCF NX10SMA Active Stage Monitor ThumbnailRCF NX10SMA Active Stage Monitor ThumbnailRCF NX10SMA Active Stage Monitor Thumbnail
  • Overview
  • Specification

The NX 10-SMA is equipped with new high power 400 W digital amplifier and a newly designed 10 " coaxial neodymium transducer that guarantees outstanding audio quality and definition as well as an extremely lightweight of the final system.

The NX 10-SMA can be also used as a portable PA system, thanks to the rugged powder coated steel pole mount installed on the side. In order to control the response of the speaker in such different applications, RCF has incorporated two special Equalization Modes:

- Floor, for stage monitoring;
- Free Field, for the use of the speakers as a stand-alone PA system.

Cabinet is made in Baltic Birch plywood, finished with an extremely resistant paint for an extensive use on the road.

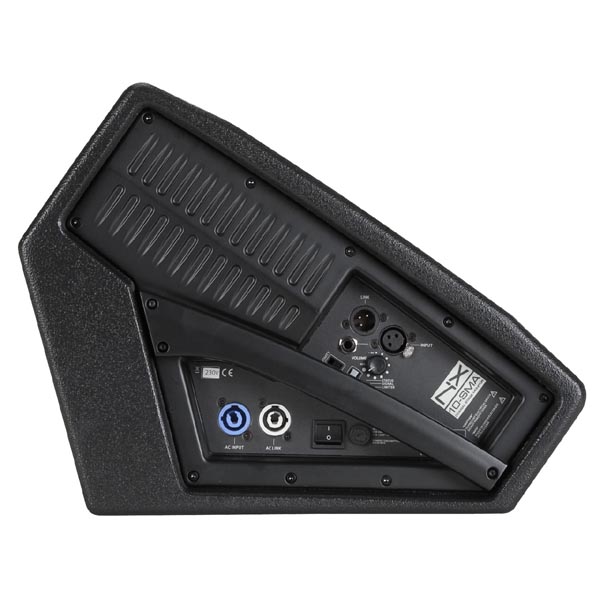

An ergonomic side handle, integrated with the input panel, is provided for an easier transport of the speaker.

FEATURES
800 Watt Peak, 400 Watt RMS digital bi-amplification
127 dB max spl
60° x 60° constant directivity horn

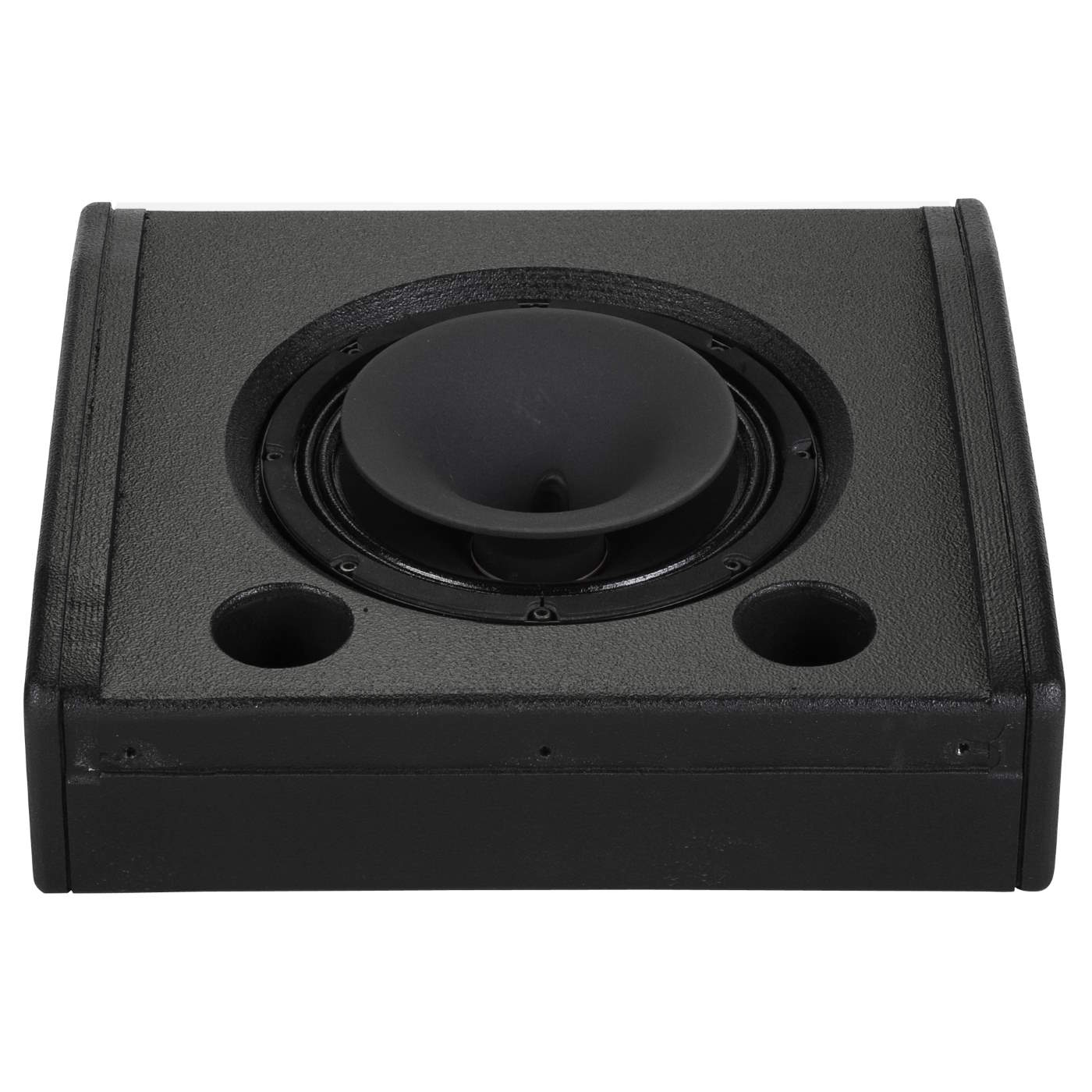

10" High power neodymium woofer, 2.5" voice coil
1.7 kapton dome, 1" exit, neodymium high frequency driver
DSP processing, floor - fre field equalization, soft limiter and protection
Combo xlr/jack input, xlr signal output


ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:60 Hz - 20000 Hz
Max SPL:127 dB
Horizontal coverage angle:60°
Vertical coverage angle:60°
Compression Driver:1.7 kapton dome, 1" exit, neodymium
Woofer:10" neo high power woofer, 2.5" voice coil

INPUT/OUTPUT SECTION
Input connectors:xlr, jack
Output connectors:xlr

PROCESSOR SECTION
Limiter:Soft Limiter
Controls:Freefield, floor

AMPLIFIER SPECIFICATIONS
Total power:800 W PEAK
High frequencies:200 W PEAK
Low frequencies:600 W PEAK
Total power:400 W RMS
High frequencies:100 W RMS
Low frequencies:300 W RMS

CABINET
Cabinet Material:Baltic Birch
Handles:1 on side
Pole Mount/Cap:yes
Grille:steel

PHYSICAL SPECIFICATIONS
Height:324/12.7 mm/inch
Width:450/17.7 mm/inch
Depth:417/16.4 mm/inch
Net Weight:14,5/31.96 kg/lbs
