Sennheiser EW-D Series Digital 10-Way Radio Mic Rack ( Premium Rack )

Ref: RK-EWD-10WAY

Quantity:

Transmitter Options :
  • PRICE: £9,239.00

Price includes VAT and FREE DELIVERY

Sennheiser EW-D Series Digital 10-Way Radio Mic Rack ( Premium Rack )
Sennheiser EW-D Series Digital 10-Way Radio Mic Rack ( Premium Rack ) ThumbnailSennheiser EW-D Series Digital 10-Way Radio Mic Rack ( Premium Rack ) Thumbnail
  • Overview
  • Transmitters
  • Frequency Ranges

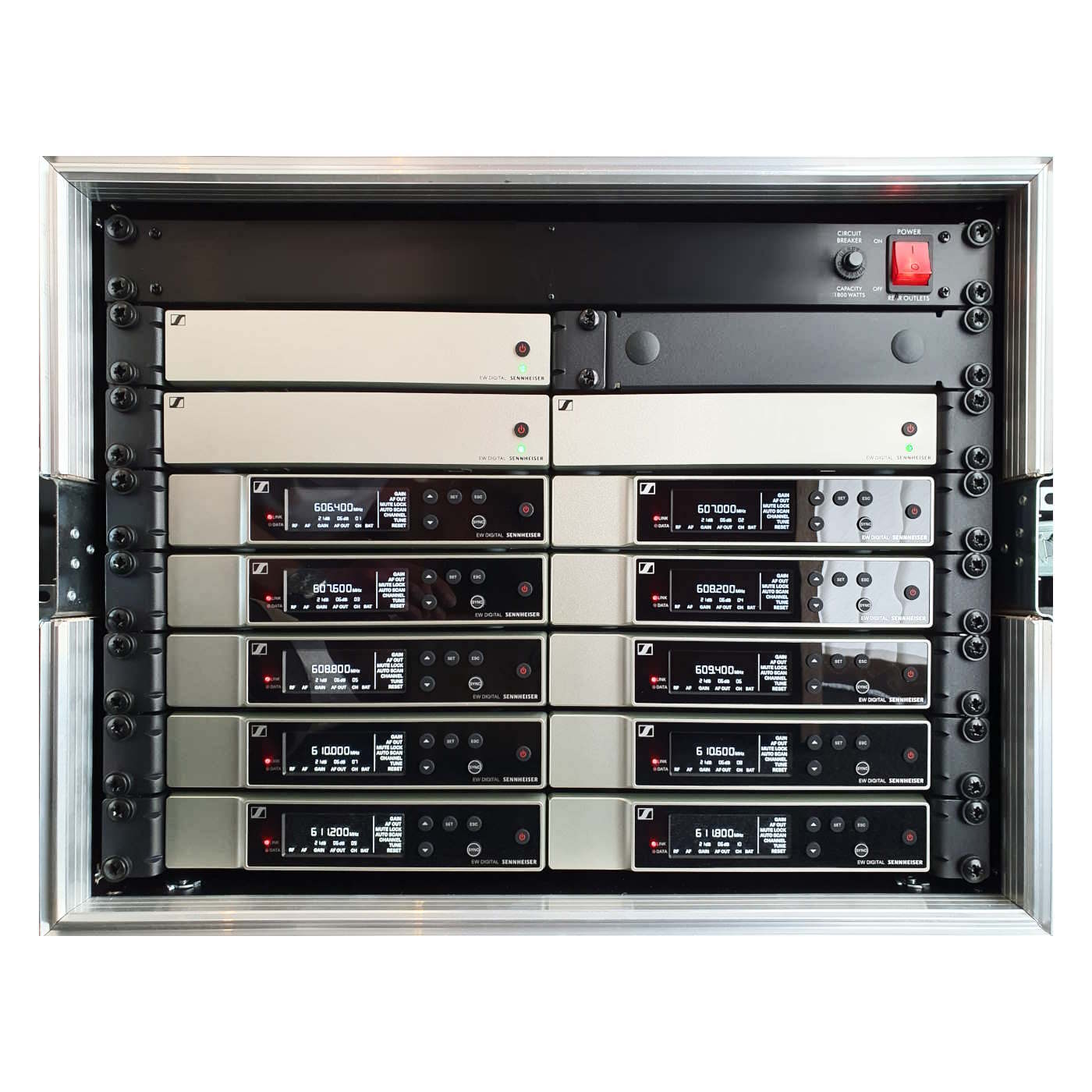

This system includes 10 x Sennheiser EW-D-EM receivers, rackmounted in a high quality black 8U flightcase together with 3 x Sennheiser EW-D-ASA active antenna splitters. Integrated Sennheiser power supplies provide DC power for all receivers. Mains power is input on a Powercon socket on the rear panel and feeds the power supplies via a 1U switched distribution unit.

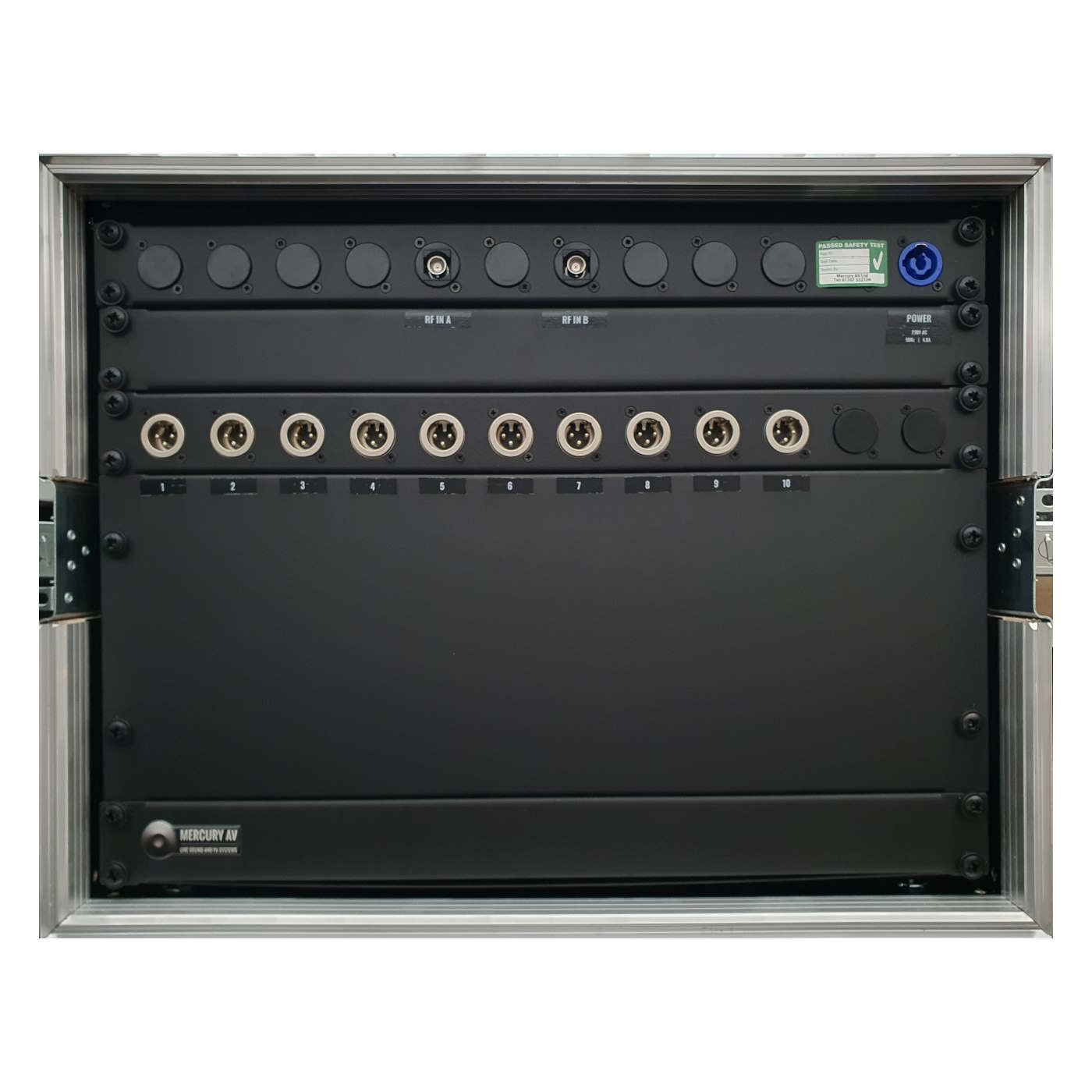

The custom patch panel includes :

10 x Balanced XLR Audio Outputs ( for connection to a mixer using the supplied Van Damme XLR loom )
2 x RF Inputs A & B ( to be fed from the supplied Sennheiser paddles via 5M BNC cables )
1 x Powercon Mains input socket, for use with the supplied Powercon cable

A blanking panel is fitted below the patch panel to fully enclose the rear of the rack and protect the internal connections.

Supplied with this system are 2 x Sennheiser A1031-U External Antennas, 2 x 5M BNC Aerial Cables, 1 x Powercon Mains Cable and 1 x 10 Way 3M Van Damme XLR Audio Loom.

The systems are provided fully assembled, patched and tested. Transmitters and receivers are pre-programmed and labelled.



The standard price for this system includes 8 x EW-DX-SK beltpack transmitters but various other options can be specified to suit different applications.

Please use the dropdown box above to see how selecting different transmitters would affect the total price. If you would like a price for a package including a combination of different types of transmitter then please contact us and we will be happy to provide a quote.


The standard frequency range we supply this system on is Sennheiser Range S1-7 ( 606.200-662.000 MHz )

Range S1-7 is suitable for use on bandwidth between 606-614MHz ( Channel 38 ) in the UK, which is covered by a standard UK radio mic licence. This is the best solution for most users and offers reliable results for portable use.

Other frequency ranges are available, which are suitable for limited licence-exempt use and for fixed site users. Please call our Sales Team on 01707 332104 if you would like to discuss this further, we will be happy to offer specific advice.
