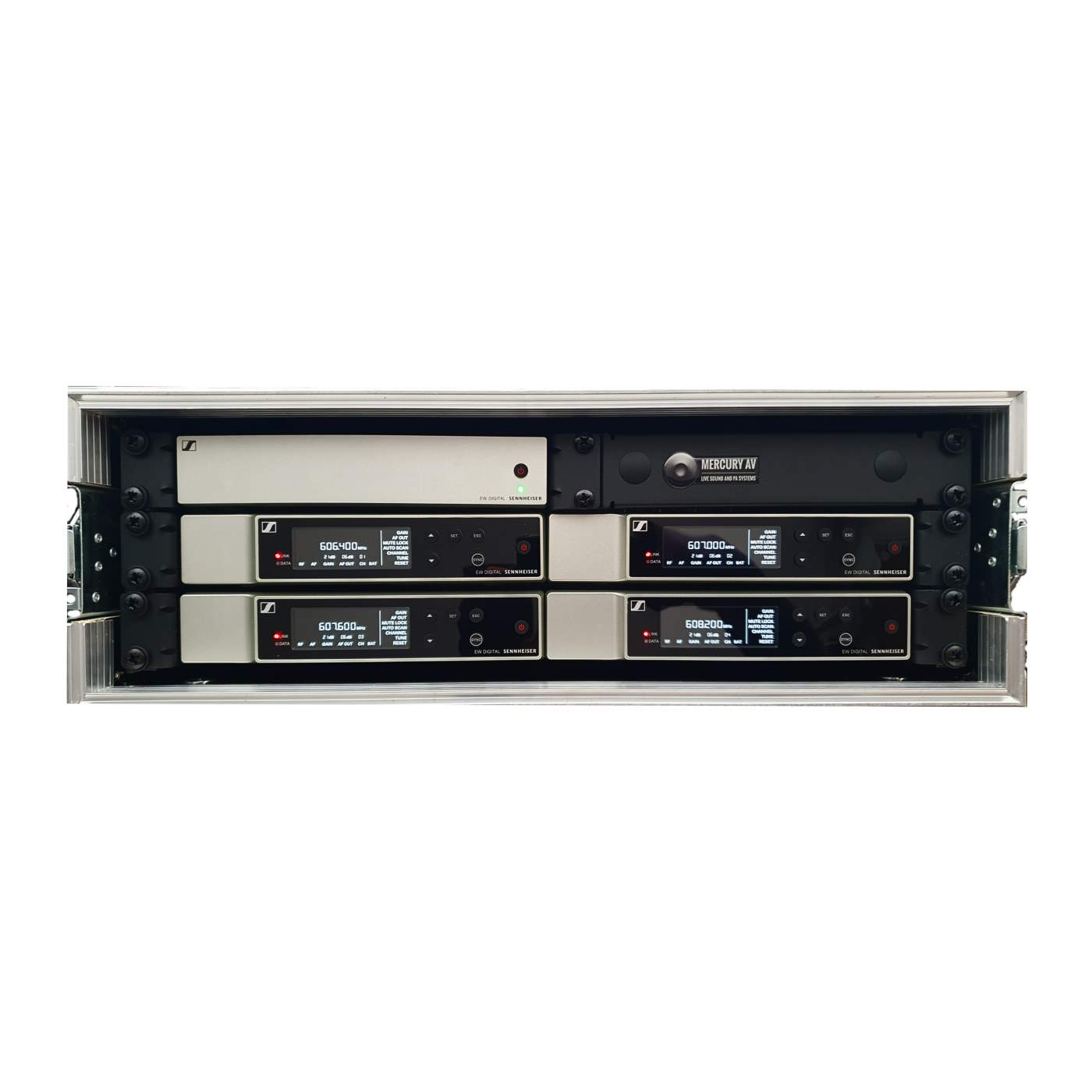

This system includes 4 x Sennheiser EW-D-EM receivers, rackmounted in a high quality black 3U flightcase together with 1 x Sennheiser EW-D-ASA active antenna splitter. An integrated Sennheiser power supply provides DC power for all receivers and is connected via a Powercon socket on the rear panel.

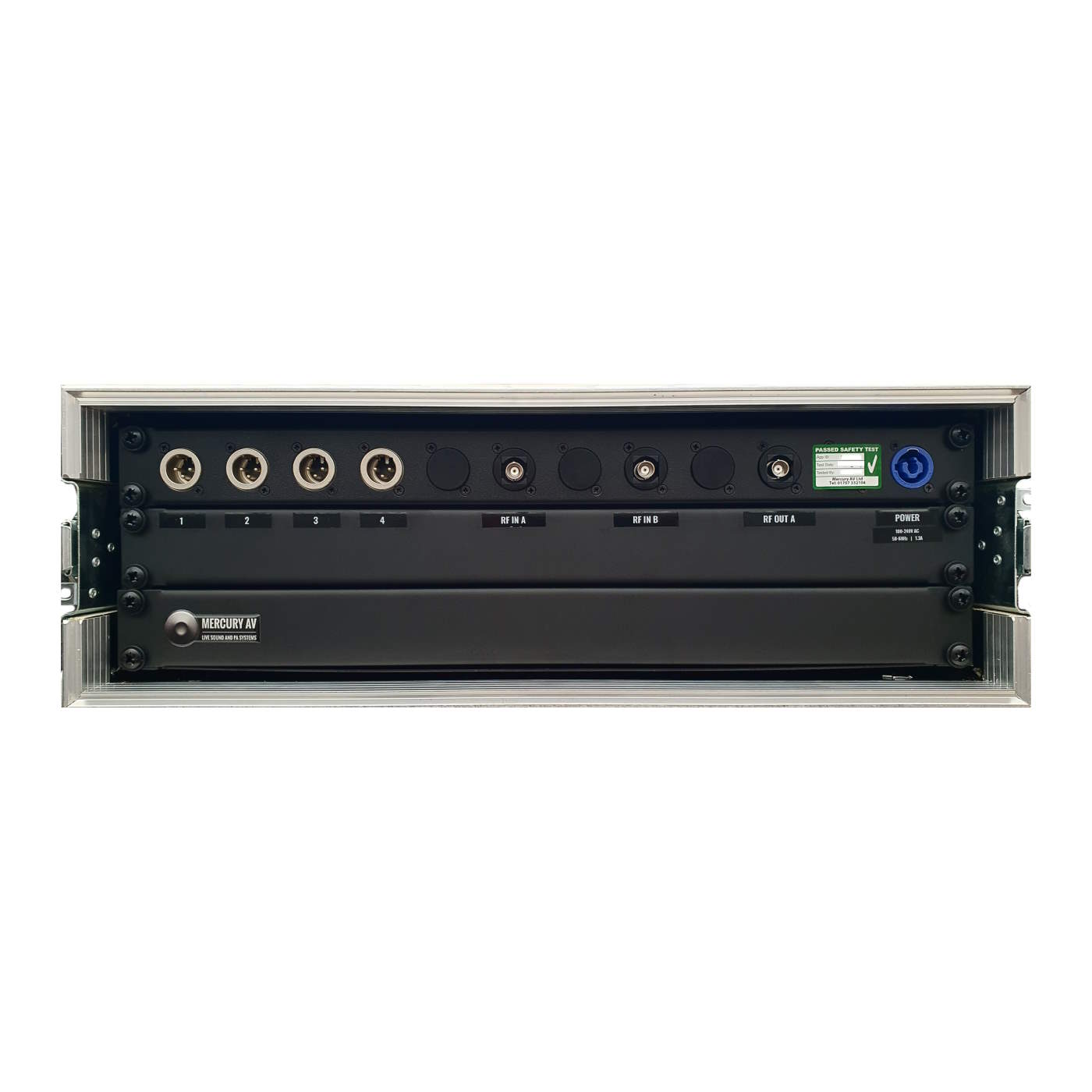

The custom patch panel includes :
4 x Balanced XLR Audio Outputs ( for connection to a mixer using the supplied Van Damme XLR loom )
2 x RF Inputs A & B ( to be fed from the supplied Sennheiser paddles via 5M BNC cables )
1 x RF Output A ( to allow cross-linking with another 4-way rack to create an 8-way setup if required )
1 x Powercon Mains input socket, for use with the supplied Powercon cable
A blanking panel is fitted below the patch panel to fully enclose the rear of the rack and protect the internal connections.
Supplied with this system are 2 x Sennheiser A1031-U External Antennas, 2 x 5M BNC Aerial Cables, 1 x Powercon Mains Cable and 1 x 4-Way 3M Van Damme XLR Audio Loom.
The systems are provided fully assembled, patched and tested. Transmitters and receivers are pre-programmed and labelled.
The standard price for this system includes 4 x EW-D-SK beltpack transmitters but various options can be supplied with this system to suit different applications.
Please use the dropdown box above to see how selecting different transmitters would affect the total price. If you would like a price for a package including a combination of different types of transmitter then please contact us and we will be happy to provide a quote.
The standard frequency range we supply this system on is Sennheiser Range S1-7 ( 606.200-662.000 MHz )
Range S1-7 is suitable for use on bandwidth between 606-614MHz ( Channel 38 ) in the UK, which is covered by a standard UK radio mic licence. This is the best solution for most users and offers reliable results for portable use.
Other frequency ranges are available, which are suitable for limited licence-exempt use and for fixed site users. Please call our Sales Team on 01707 332104 if you would like to discuss this further, we will be happy to offer specific advice.
