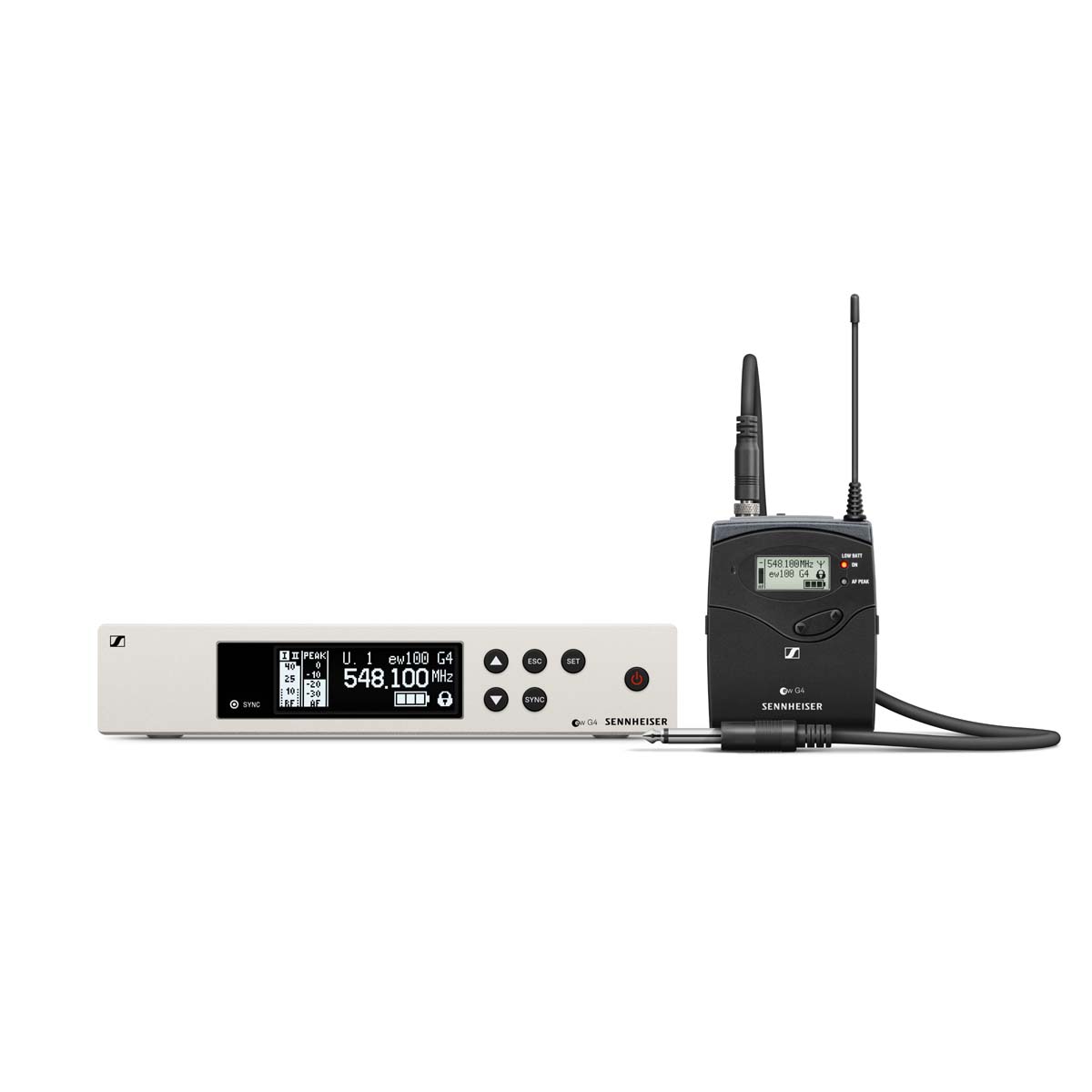

The Sennheiser EW100-G4-Ci1 wireless guitar system includes a rugged beltpack transmitter and Ci1 instrument cable, terminated in a standard 1/4inch jack cable. This system is perfect for electric guitar, but the extended frequency response of the system and wide range of sensitivity adjustment mean it is equally capable of giving excellent results with bass guitar or acoustic instruments fitted a pickup.
1 x EM100 G4 true diversity receiver with 42MHz tuning bandwidth

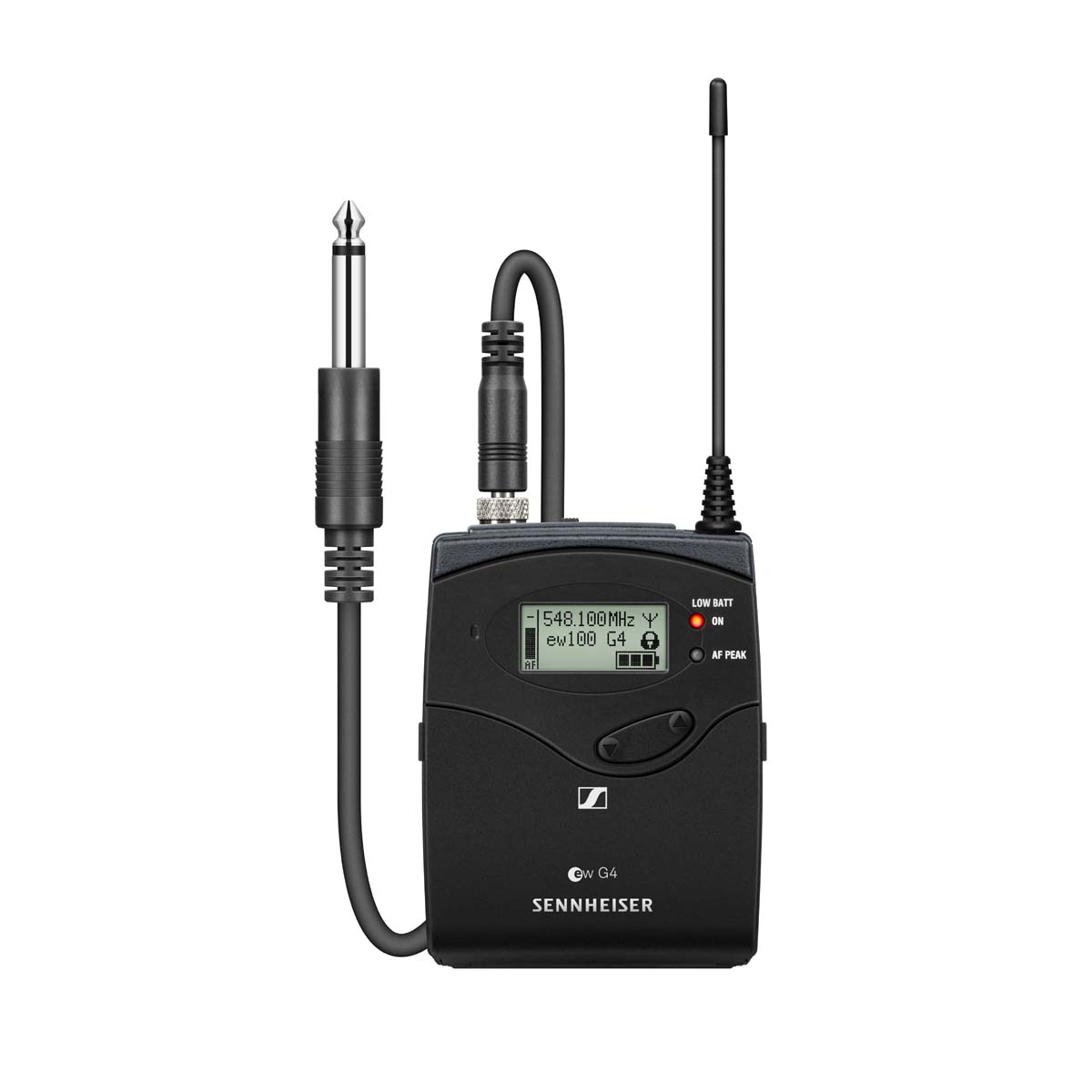

1 x SK 100 G4 bodypack transmitter
1 x Ci 1 instrument cable - locking minijack to 1/4 inch jack plug
1 x GA 3 rackmount kit
1 x 12V DC power supply
2 x AA batteries
2 x BNC rod antennas
1 x RJ 10 linking cable - allows fast, simultaneous setup of up to 12 linked systems
1 x User guide & frequency planner sheet
Engineeered for professional live sound : Rugged all-in-one wireless system for guitar and bass.
• Robust bodypack transmitter and robust Ci 1 instrument cable for daily use on stage
• True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations
Range E ( 823-865 MHz )
Range E is a flexible choice for use in the UK and across Europe. Without a licence it can be used in the UK between 863-865 MHz. This is enough bandwidth to allow the use of upto 4 x systems simultaneously.
With a UK radio mic licence, it can be used between 823-832 MHz. This falls under the scope of the revised licence brought into effect in April 2015. This is sufficient bandwidth to alllow the use of upto 13 x simultaneous systems. Access to 823-832 MHz is also well co-ordinated across Europe.
Please phone our Sales Team on 01707 332104 if you have any questions about frequencies and licencing, we will be happy to help.
