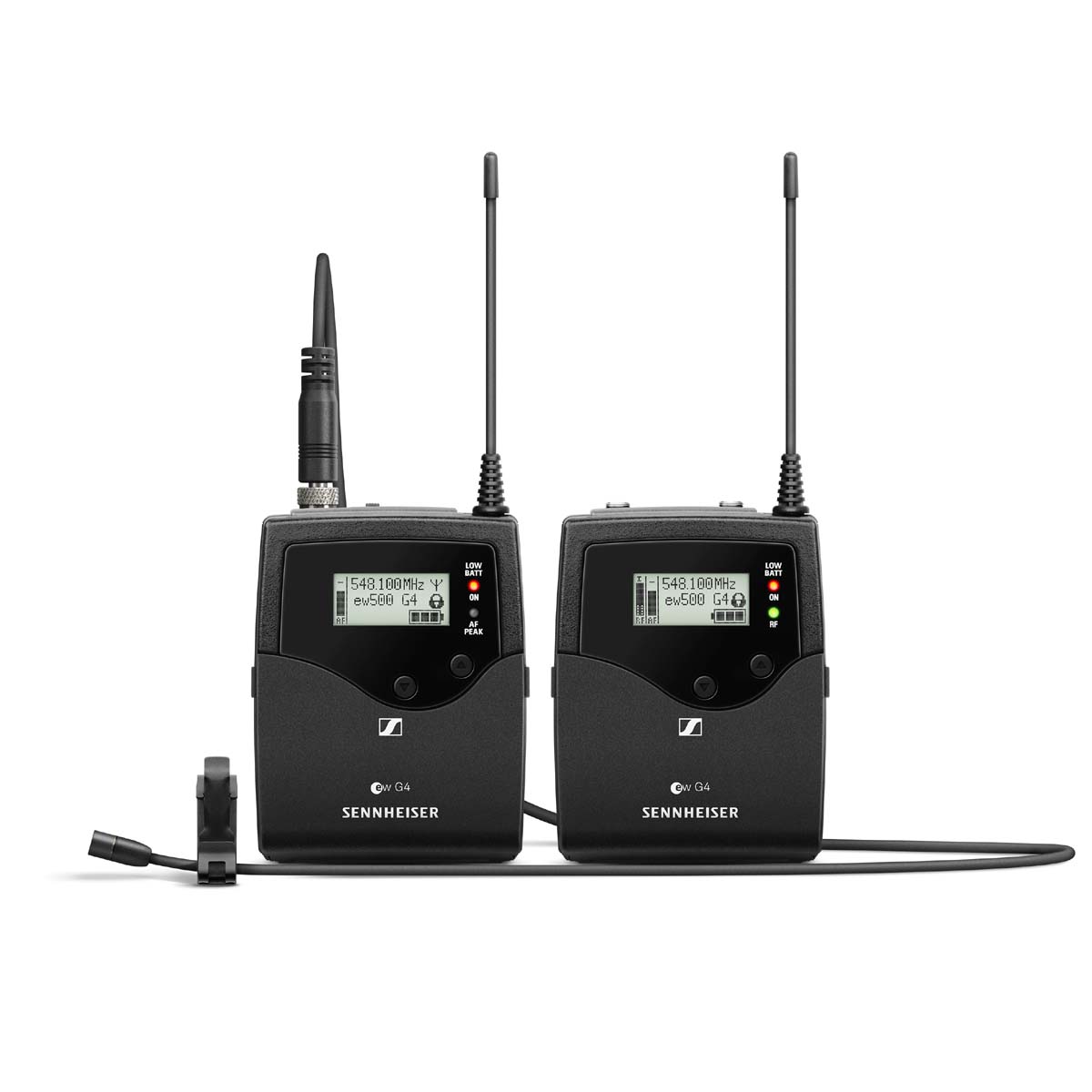

The Sennheiser EW512P-G4-GBW is a wireless lavalier system designed for portable ENG and video production applications. Both the SK500-G4 beltpack and EK500-G4 receiver are battery powered ( 2 x AA batteries each ) which give upto 8 hours use on location.
The system is provided with an MKE2-EW-GOLD lapel microphone, which is capable of broadcast quality sound. The umbrella diaphragm used in this mic help to prevent damage to due to moisture ingress. To help prevent wind noise when used outside a soft 'furry' windshield is included in the kit.
Two different output cables are provided for use with the EK500-G4. The CL1 cable has a 3.5mm mini-jack output, so is suitable for use with semi-professional video cameras and DSLR cameras. Alternatively, the CL500 cable is terminated with a male XLR plug, for use with cameras fitted with professional XLR mic inputs. As well as the line-level output on the EK500-G4 receiver, a second mini-jack is provided to allow monitoring of the sound with any headphones or earphones fitted with a standard 3.5mm plug.
1 x EK500 G4 video camera / DSLR receiver
1 x SK500 G4 bodypack transmitter
1 x MKE2 lapel mic
4 x AA batteries
1 x CL1 3.5 mm jack output cable
1 x CL 500 XLR output cable
1 x CA 2 camera adapter
1 x Fur windscreen for MKE2
1 x User manual
• Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
• Professional sound and excellent construction quality
• Easy to use and fast setup time
• Easy and flexible wireless synchronisation between transmitter and receiver via infrared
• Up to 88 MHz bandwidth, up to 32 channels
• Range: up to 100 meters / 330 feet
• Increased RF output power (10/30/50 mW)
• Up to 8 hours of operation time
Range GBW ( 606-678 MHz )
Range GBW is suitable for use on bandwidth between 606-614MHz ( Channel 38 ) in the UK, which is covered by a standard UK radio mic licence. This is the best solution for most users and offers reliable results for portable use. Upto 12 x systems can be operated together and the licence allows use across the UK, indoors & outdoors.
Frequency range GBW covers a total of 72MHz of bandwidth, enabling configuration of large multi-channel setups when 48-hour portable licences or fixed site licences are used for more specialist applications.
Other frequency ranges are available, which are suitable for limited licence-exempt use and for fixed site users. Please call our Sales Team on 01707 332104 if you would like to discuss this further, we will be happy to offer specific advice.
