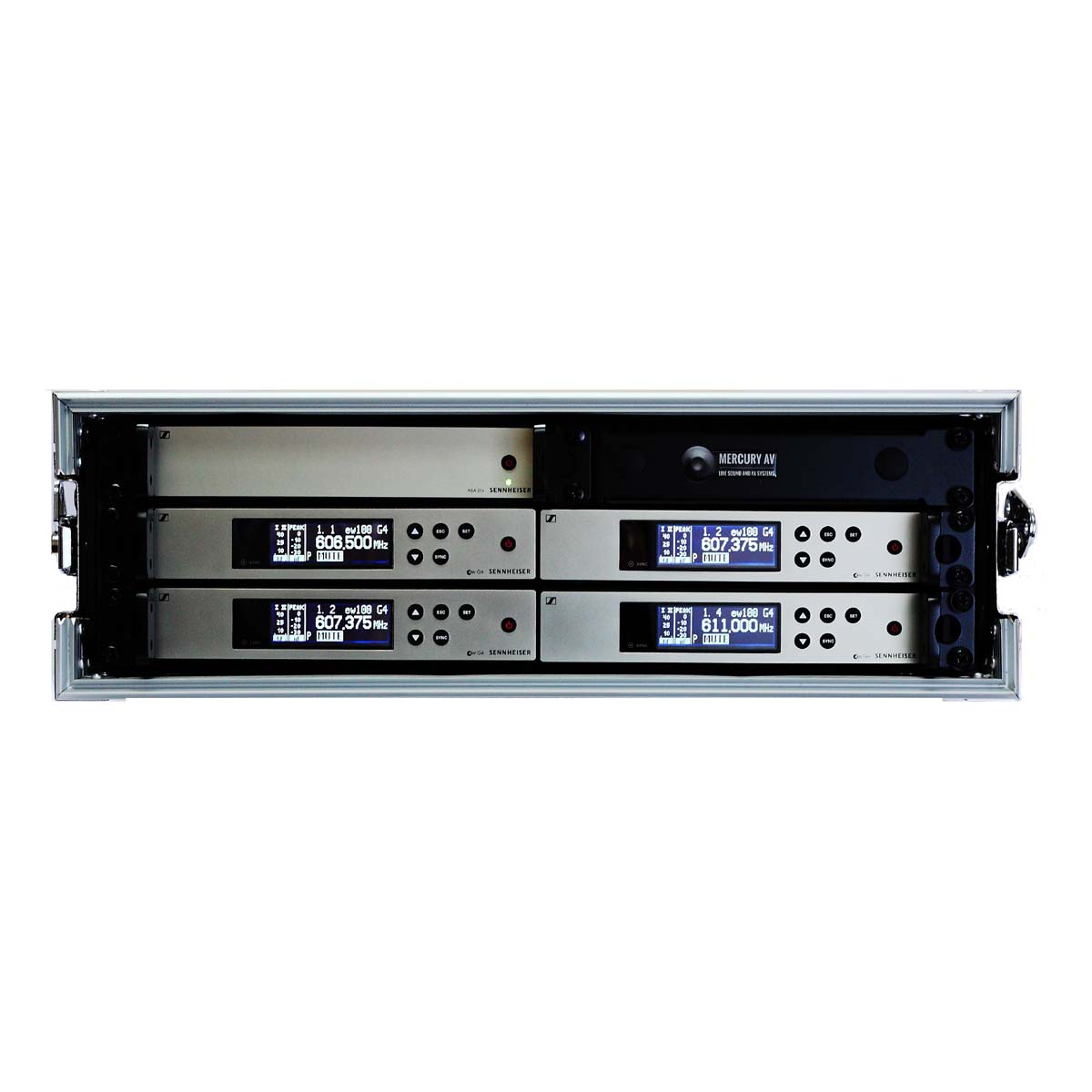

This system includes 4 x Sennheiser EM100 G4 receivers, rackmounted in a high quality black 3U flightcase together with 1 x Sennheiser EW-D-ASA active antenna splitter. An integrated Sennheiser power supply provides DC power for all receivers and is connected via a Powercon socket on the rear panel.
The custom patch panel includes :
4 x Balanced XLR Audio Outputs ( for connection to a mixer using the supplied Van Damme XLR loom )
2 x RF Inputs A & B ( to be fed from the supplied Sennheiser paddles via 5M BNC cables )
1 x RF Output A ( to allow cross-linking with another 4-way rack to create an 8-way setup if required )
1 x Powercon Mains input socket, for use with the supplied Powercon cable
A blanking panel is fitted below the patch panel to fully enclose the rear of the rack and protect the internal connections.
Supplied with this system are 2 x Sennheiser A1031-U External Antennas, 2 x 5M BNC Aerial Cables, 1 x Powercon Mains Cable and 1 x 4-Way 3M Van Damme XLR Audio Loom.
The systems are provided fully assembled, patched and tested. Transmitters and receivers are pre-programmed and labelled.
Various different transmitters options can be supplied with this system.
Please use the dropdown box above to see how selecting different transmitters would affect the total price. If you would like a price for a package including a combination of different types of transmitter then please contact us and we will be happy to provide a quote.
Range GB ( 606-648 MHz ) : Range GB is suitable for use on Channel 38 ( 606-614 MHz ) with a UK radio mic licence.
Range E ( 823-832 MHz ) : Range E is suitable for use on 823-832 MHz spectrum with a UK radio mic licence. This bandwidth is also well co-ordinated across Europe. Range E can also be used licence exempt in the UK 863-865 MHz.
Other frequency ranges are available by special request, which are suitable for fixed site users. Please contact our Sales Team if you would like to discuss this further, we will be happy to offer specific advice.
